SDO HMI 2014-04-23 05:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.50 | 249.62 | 28.31 | 157.03 | -23.59 | 116.46 | -34.30 | 122.93 | 0.6168 | 305.5 | 189.2 | |
|
previous
or next observation for the same group /

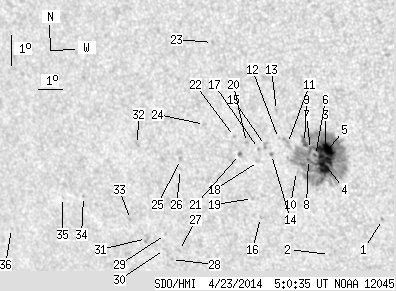

back to the solar disc SDO HMI 2014-04-23 05:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.71 | -25.64 | 119.01 | -31.75 | 127.60 | 0.6009 | 686.0 | 582.0 | |
| 0.00 | 0.62 | 0.00 | 0.40 | -26.67 | 116.56 | -34.20 | 127.38 | 0.6344 | 536.0 | 431.6 | |
| 18.31 | 206.34 | 11.35 | 128.51 | -23.35 | 117.44 | -33.32 | 123.11 | 0.6043 | 1262.8 | 340.8 | |
| 17.59 | -3.00 | 10.96 | -3.00 | -23.79 | 117.31 | -33.45 | 123.70 | 0.6084 | 981.6 | 999999 | |
| 3.47 | -3.00 | 2.16 | -3.00 | -23.53 | 117.23 | -33.53 | 123.25 | 0.6078 | 913.0 | 999999 | |
| 0.89 | -3.00 | 0.55 | -3.00 | -23.49 | 117.01 | -33.75 | 123.05 | 0.6102 | 650.7 | 999999 | |
| 1.16 | -3.00 | 0.72 | -3.00 | -23.29 | 116.87 | -33.89 | 122.67 | 0.6107 | 664.4 | 999999 | |
| 0.71 | -3.00 | 0.45 | -3.00 | -23.60 | 116.70 | -34.06 | 123.03 | 0.6144 | 482.4 | 999999 | |
| 2.84 | -3.00 | 1.78 | -3.00 | -23.06 | 116.70 | -34.06 | 122.21 | 0.6113 | 595.9 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.39 | -23.96 | 116.11 | -34.65 | 123.20 | 0.6232 | -157.0 | -176.7 | |
| 0.00 | 6.04 | 0.00 | 3.80 | -23.06 | 116.02 | -34.74 | 121.81 | 0.6192 | -116.0 | 35.7 | |
| 0.00 | 0.89 | 0.00 | 0.56 | -22.88 | 115.71 | -35.05 | 121.37 | 0.6219 | 331.0 | 244.4 | |
| 0.00 | 1.42 | 0.00 | 0.89 | -22.00 | 115.89 | -34.87 | 120.15 | 0.6152 | -817.0 | -651.8 | |
| 0.00 | 1.51 | 0.00 | 0.96 | -23.38 | 115.28 | -35.48 | 121.85 | 0.6295 | -886.0 | -711.8 | |
| 0.00 | 2.58 | 0.00 | 1.64 | -23.08 | 115.13 | -35.63 | 121.33 | 0.6297 | -816.0 | -753.6 | |
| 0.00 | 0.80 | 0.00 | 0.52 | -25.35 | 114.17 | -36.59 | 124.06 | 0.6525 | 626.0 | 504.1 | |
| 0.00 | 1.16 | 0.00 | 0.74 | -23.16 | 114.82 | -35.94 | 121.28 | 0.6337 | -667.0 | -549.2 | |
| 0.00 | 1.95 | 0.00 | 1.25 | -23.57 | 114.69 | -36.07 | 121.81 | 0.6373 | -222.0 | -318.6 | |
| 0.00 | 1.07 | 0.00 | 0.69 | -24.73 | 114.06 | -36.70 | 123.12 | 0.6505 | 660.0 | 540.2 | |
| 0.00 | 1.42 | 0.00 | 0.91 | -22.95 | 114.40 | -36.36 | 120.74 | 0.6375 | -848.0 | -678.6 | |
| 0.53 | 1.78 | 0.34 | 1.15 | -23.31 | 114.00 | -36.76 | 121.06 | 0.6439 | -797.5 | -674.1 | |
| 0.00 | 0.98 | 0.00 | 0.63 | -22.74 | 113.98 | -36.78 | 120.21 | 0.6413 | -719.0 | -613.8 | |
| 0.00 | 1.33 | 0.00 | 0.85 | -19.76 | 113.96 | -36.80 | 115.76 | 0.6282 | -561.0 | -373.1 | |
| 0.00 | 1.42 | 0.00 | 0.93 | -22.30 | 112.88 | -37.88 | 119.02 | 0.6519 | -646.0 | -428.2 | |
| 0.00 | 2.13 | 0.00 | 1.42 | -23.34 | 111.52 | -39.24 | 119.88 | 0.6721 | -685.0 | -495.5 | |
| 0.00 | 0.53 | 0.00 | 0.36 | -23.66 | 111.41 | -39.35 | 120.27 | 0.6747 | -605.0 | -465.0 | |
| 0.00 | 1.51 | 0.00 | 1.04 | -26.23 | 110.36 | -40.40 | 123.28 | 0.6978 | -630.0 | -585.2 | |
| 0.00 | 1.07 | 0.00 | 0.74 | -26.50 | 109.89 | -40.87 | 123.41 | 0.7039 | -650.0 | -517.0 | |
| 0.00 | 1.07 | 0.00 | 0.74 | -25.69 | 109.97 | -40.79 | 122.37 | 0.6994 | -575.0 | -528.8 | |
| 0.00 | 1.16 | 0.00 | 0.80 | -26.16 | 109.72 | -41.04 | 122.89 | 0.7041 | -606.0 | -530.1 | |
| 0.00 | 3.82 | 0.00 | 2.68 | -25.77 | 109.08 | -41.68 | 122.08 | 0.7090 | -641.0 | -523.4 | |
| 0.00 | 2.04 | 0.00 | 1.39 | -22.78 | 109.88 | -40.88 | 118.36 | 0.6881 | -752.0 | -500.1 | |
| 0.00 | 0.98 | 0.00 | 0.69 | -25.12 | 108.64 | -42.12 | 121.03 | 0.7109 | -577.0 | -487.5 | |
| 0.00 | 0.98 | 0.00 | 0.70 | -24.28 | 106.86 | -43.90 | 119.19 | 0.7263 | -528.0 | -484.9 | |
| 0.00 | 0.44 | 0.00 | 0.32 | -24.25 | 105.90 | -44.86 | 118.81 | 0.7363 | -564.0 | -514.0 | |
| 0.00 | 0.80 | 0.00 | 0.62 | -25.09 | 103.04 | -47.72 | 118.91 | 0.7678 | -350.0 | -248.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
