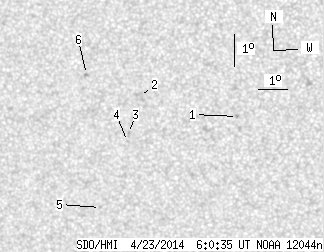

SDO HMI 2014-04-23 06:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.00 | 0.00 | 6.71 | -19.85 | 126.38 | -23.84 | 124.86 | 0.4651 | 473.5 | 455.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-23 06:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.42 | 0.00 | 0.78 | -19.94 | 129.81 | -20.40 | 128.88 | 0.4227 | 808.0 | 636.5 | |
| 0.00 | 4.98 | 0.00 | 2.77 | -19.21 | 126.53 | -23.68 | 123.77 | 0.4581 | 576.0 | 619.3 | |
| 0.00 | 2.13 | 0.00 | 1.20 | -20.35 | 125.96 | -24.25 | 125.35 | 0.4740 | 809.0 | 553.6 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -20.60 | 125.88 | -24.33 | 125.72 | 0.4769 | 837.0 | 619.8 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -22.64 | 124.54 | -25.68 | 127.97 | 0.5093 | 658.0 | 509.7 | |
| 0.00 | 1.33 | 0.00 | 0.75 | -18.47 | 124.79 | -25.42 | 120.73 | 0.4756 | -847.0 | -670.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
