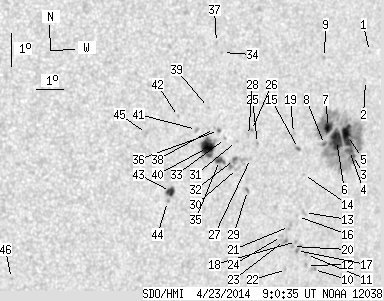

SDO HMI 2014-04-23 09:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.66 | 292.43 | 44.96 | 187.55 | -10.76 | 187.88 | 39.31 | 258.96 | 0.6360 | 270.4 | 236.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-23 09:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.59 | -7.66 | 190.05 | 41.48 | 263.98 | 0.6624 | 496.0 | 434.3 | |
| 0.00 | 0.62 | 0.00 | 0.41 | -8.54 | 190.00 | 41.43 | 262.64 | 0.6620 | 530.0 | 499.4 | |
| 0.98 | 185.54 | 0.64 | 121.12 | -10.82 | 189.85 | 41.28 | 259.17 | 0.6620 | 558.5 | 366.0 | |
| 3.38 | -3.00 | 2.22 | -3.00 | -10.68 | 189.66 | 41.09 | 259.36 | 0.6594 | 685.6 | 999999 | |
| 14.40 | -3.00 | 9.43 | -3.00 | -10.23 | 189.51 | 40.94 | 260.02 | 0.6570 | 816.7 | 999999 | |
| 17.42 | -3.00 | 11.34 | -3.00 | -10.41 | 189.09 | 40.52 | 259.71 | 0.6517 | 967.0 | 999999 | |
| 6.22 | -3.00 | 4.03 | -3.00 | -10.03 | 188.71 | 40.14 | 260.24 | 0.6464 | 1087.7 | 999999 | |
| 0.89 | -3.00 | 0.58 | -3.00 | -10.56 | 188.63 | 40.06 | 259.42 | 0.6459 | 909.7 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.86 | -7.93 | 188.27 | 39.70 | 263.48 | 0.6391 | 680.0 | 626.5 | |
| 0.00 | 2.40 | 0.00 | 1.57 | -14.36 | 188.89 | 40.32 | 253.64 | 0.6555 | 533.0 | 476.6 | |
| 0.00 | 1.33 | 0.00 | 0.87 | -13.92 | 188.51 | 39.94 | 254.22 | 0.6498 | 647.0 | 466.1 | |
| 0.00 | 1.69 | 0.00 | 1.10 | -14.26 | 188.58 | 40.01 | 253.73 | 0.6514 | 653.0 | 582.9 | |
| 0.00 | 2.40 | 0.00 | 1.55 | -12.65 | 188.18 | 39.61 | 256.10 | 0.6431 | 700.0 | 590.4 | |
| 0.00 | 0.89 | 0.00 | 0.57 | -11.51 | 187.94 | 39.37 | 257.84 | 0.6381 | -572.0 | -435.2 | |
| 0.71 | 1.60 | 0.45 | 1.02 | -10.73 | 187.62 | 39.05 | 259.01 | 0.6328 | 783.8 | 684.6 | |
| 0.00 | 0.53 | 0.00 | 0.34 | -12.79 | 187.92 | 39.35 | 255.84 | 0.6400 | 697.0 | 613.8 | |
| 0.36 | 3.47 | 0.23 | 2.24 | -13.82 | 188.08 | 39.51 | 254.28 | 0.6441 | 653.0 | 457.6 | |
| 0.00 | 1.33 | 0.00 | 0.86 | -13.55 | 188.03 | 39.46 | 254.69 | 0.6429 | 684.0 | 565.7 | |
| 0.00 | 2.31 | 0.00 | 1.47 | -10.29 | 187.35 | 38.78 | 259.67 | 0.6287 | 414.0 | 370.1 | |
| 0.00 | 1.51 | 0.00 | 0.97 | -13.71 | 187.90 | 39.33 | 254.41 | 0.6415 | 757.0 | 680.5 | |
| 0.00 | 3.64 | 0.00 | 2.34 | -13.11 | 187.66 | 39.09 | 255.29 | 0.6372 | 530.0 | 623.8 | |
| 0.00 | 0.53 | 0.00 | 0.34 | -14.42 | 187.80 | 39.23 | 253.29 | 0.6418 | 601.0 | 572.2 | |
| 0.00 | 2.84 | 0.00 | 1.82 | -13.54 | 187.55 | 38.98 | 254.58 | 0.6366 | 651.0 | 653.5 | |
| 0.00 | 2.75 | 0.00 | 1.76 | -13.43 | 187.40 | 38.83 | 254.73 | 0.6345 | 753.0 | 478.5 | |
| 0.00 | 1.24 | 0.00 | 0.78 | -10.66 | 186.00 | 37.43 | 258.87 | 0.6110 | -561.0 | -468.3 | |
| 0.00 | 1.33 | 0.00 | 0.83 | -10.28 | 185.72 | 37.14 | 259.45 | 0.6066 | 678.0 | 598.1 | |
| 0.00 | 0.71 | 0.00 | 0.44 | -11.13 | 185.80 | 37.23 | 258.07 | 0.6089 | -520.0 | -407.5 | |
| 0.00 | 1.42 | 0.00 | 0.88 | -10.44 | 185.62 | 37.05 | 259.17 | 0.6055 | 643.0 | 481.4 | |
| 0.00 | 1.78 | 0.00 | 1.11 | -12.10 | 185.83 | 37.26 | 256.49 | 0.6111 | -700.0 | -519.4 | |
| 0.00 | 1.78 | 0.00 | 1.10 | -11.45 | 185.34 | 36.77 | 257.44 | 0.6033 | -618.0 | -537.0 | |
| 0.00 | 0.71 | 0.00 | 0.44 | -10.64 | 185.19 | 36.62 | 258.76 | 0.5999 | 616.0 | 572.0 | |
| 0.98 | 12.17 | 0.60 | 7.54 | -11.19 | 185.19 | 36.62 | 257.85 | 0.6008 | -788.1 | -581.7 | |
| 0.00 | 1.16 | 0.00 | 0.71 | -10.57 | 184.76 | 36.19 | 258.80 | 0.5939 | -550.0 | -371.0 | |
| 0.00 | 0.98 | 0.00 | 0.60 | -7.98 | 184.34 | 35.77 | 263.14 | 0.5852 | -537.0 | -447.4 | |
| 3.91 | 7.73 | 2.40 | 4.75 | -11.25 | 184.62 | 36.05 | 257.64 | 0.5932 | -874.4 | -590.4 | |
| 0.53 | 1.78 | 0.33 | 1.09 | -10.34 | 184.46 | 35.89 | 259.14 | 0.5895 | -617.5 | -477.5 | |
| 0.00 | 1.16 | 0.00 | 0.70 | -7.69 | 184.09 | 35.52 | 263.62 | 0.5815 | -558.0 | -475.9 | |
| 0.00 | 0.27 | 0.00 | 0.16 | -10.29 | 184.30 | 35.73 | 259.20 | 0.5872 | -500.0 | -546.0 | |
| 0.00 | 0.89 | 0.00 | 0.54 | -9.67 | 184.00 | 35.43 | 260.21 | 0.5821 | -749.0 | -684.6 | |
| 16.26 | 24.44 | 9.92 | 14.91 | -10.87 | 184.12 | 35.55 | 258.17 | 0.5855 | -1016.1 | -613.9 | |
| 0.00 | 2.13 | 0.00 | 1.29 | -10.35 | 183.63 | 35.06 | 258.97 | 0.5779 | -811.0 | -637.5 | |
| 0.00 | 0.98 | 0.00 | 0.59 | -9.99 | 182.92 | 34.35 | 259.47 | 0.5673 | -648.0 | -541.8 | |
| 4.62 | 6.93 | 2.79 | 4.18 | -12.27 | 182.92 | 34.35 | 255.49 | 0.5717 | 974.5 | 742.4 | |
| 0.00 | 1.24 | 0.00 | 0.75 | -12.58 | 182.86 | 34.29 | 254.93 | 0.5716 | 710.0 | 673.8 | |
| 0.00 | 3.11 | 0.00 | 1.85 | -10.56 | 181.80 | 33.23 | 258.24 | 0.5525 | -199.0 | -315.2 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -15.16 | 177.55 | 28.97 | 248.05 | 0.5061 | 799.0 | 618.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
