SDO HMI 2014-04-23 09:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.30 | 0.00 | 3.49 | -19.42 | 125.79 | -22.78 | 125.11 | 0.4486 | 281.6 | 277.4 | |
|
previous
or next observation for the same group /

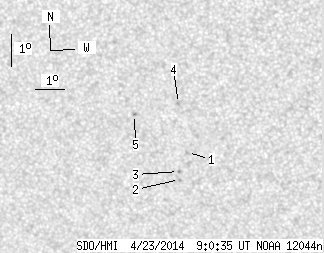

back to the solar disc SDO HMI 2014-04-23 09:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.33 | 0.00 | 0.74 | -19.74 | 126.31 | -22.26 | 126.31 | 0.4444 | 497.0 | 581.3 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -20.58 | 125.90 | -22.67 | 127.44 | 0.4563 | 506.0 | 503.8 | |
| 0.00 | 1.24 | 0.00 | 0.69 | -20.33 | 125.91 | -22.67 | 126.98 | 0.4542 | 631.0 | 607.9 | |
| 0.00 | 1.33 | 0.00 | 0.73 | -18.21 | 126.22 | -22.36 | 123.18 | 0.4335 | 733.0 | 606.3 | |
| 0.00 | 1.33 | 0.00 | 0.74 | -18.50 | 124.65 | -23.92 | 122.19 | 0.4562 | -959.0 | -838.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
