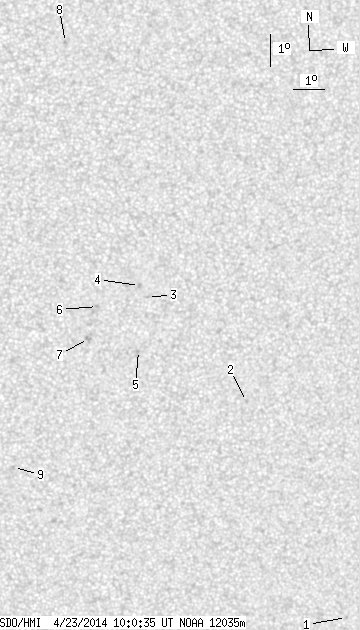

SDO HMI 2014-04-23 10:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.51 | 0.00 | 7.12 | -18.87 | 161.62 | 13.59 | 223.19 | 0.3329 | -809.1 | -674.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-23 10:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.62 | -27.46 | 170.26 | 22.23 | 220.78 | 0.5161 | -572.0 | -482.2 | |
| 0.00 | 0.98 | 0.00 | 0.53 | -20.67 | 165.64 | 17.62 | 225.79 | 0.3967 | -775.0 | -621.5 | |
| 0.00 | 0.98 | 0.00 | 0.51 | -17.51 | 162.05 | 14.02 | 226.33 | 0.3209 | -732.0 | -511.8 | |
| 0.00 | 2.13 | 0.00 | 1.11 | -17.14 | 161.76 | 13.74 | 226.64 | 0.3135 | -1007.0 | -738.2 | |
| 0.00 | 0.62 | 0.00 | 0.33 | -19.15 | 161.89 | 13.86 | 222.33 | 0.3376 | -640.0 | -536.3 | |
| 0.00 | 1.42 | 0.00 | 0.74 | -17.81 | 160.45 | 12.42 | 222.27 | 0.3058 | -907.0 | -709.9 | |
| 0.00 | 3.47 | 0.00 | 1.81 | -18.81 | 160.22 | 12.20 | 219.56 | 0.3155 | -849.0 | -743.6 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -9.77 | 159.03 | 11.00 | 245.33 | 0.2080 | -923.0 | -742.6 | |
| 0.00 | 1.51 | 0.00 | 0.80 | -22.89 | 158.06 | 10.03 | 207.38 | 0.3506 | -877.0 | -679.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
