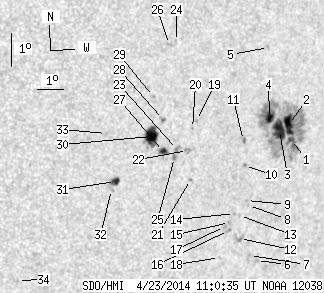

SDO HMI 2014-04-23 11:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61.84 | 241.74 | 39.93 | 157.72 | -10.70 | 187.97 | 40.49 | 259.20 | 0.6516 | 285.9 | 261.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-23 11:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.93 | 162.41 | 1.96 | 107.82 | -10.64 | 189.66 | 42.19 | 259.54 | 0.6735 | 657.8 | 356.6 | |
| 12.53 | -1.00 | 8.34 | -1.00 | -10.20 | 189.47 | 41.99 | 260.18 | 0.6705 | 816.9 | 999999 | |
| 16.35 | -1.00 | 10.83 | -1.00 | -10.40 | 189.13 | 41.65 | 259.84 | 0.6664 | 959.7 | 999999 | |
| 6.13 | -1.00 | 4.03 | -1.00 | -10.03 | 188.66 | 41.18 | 260.35 | 0.6600 | 1114.0 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.81 | -7.93 | 188.33 | 40.86 | 263.54 | 0.6543 | 662.0 | 571.5 | |
| 0.00 | 1.87 | 0.00 | 1.24 | -14.38 | 188.95 | 41.47 | 253.87 | 0.6701 | 530.0 | 470.5 | |
| 0.00 | 0.80 | 0.00 | 0.53 | -14.25 | 188.63 | 41.15 | 254.00 | 0.6658 | 729.0 | 619.7 | |
| 0.00 | 0.80 | 0.00 | 0.52 | -12.73 | 188.27 | 40.79 | 256.20 | 0.6585 | 595.0 | 519.6 | |
| 0.00 | 0.98 | 0.00 | 0.64 | -12.59 | 188.16 | 40.68 | 256.40 | 0.6569 | 724.0 | 627.3 | |
| 0.00 | 1.24 | 0.00 | 0.81 | -11.53 | 187.89 | 40.41 | 257.96 | 0.6518 | -573.0 | -519.9 | |
| 0.00 | 2.40 | 0.00 | 1.56 | -10.78 | 187.72 | 40.25 | 259.09 | 0.6486 | 624.0 | 681.5 | |
| 0.00 | 5.24 | 0.00 | 3.44 | -13.75 | 188.11 | 40.63 | 254.62 | 0.6583 | 337.0 | 474.9 | |
| 0.00 | 0.98 | 0.00 | 0.64 | -13.06 | 187.97 | 40.49 | 255.65 | 0.6552 | 517.0 | 478.5 | |
| 0.00 | 0.98 | 0.00 | 0.64 | -13.01 | 187.75 | 40.28 | 255.68 | 0.6524 | 801.0 | 621.2 | |
| 0.00 | 1.60 | 0.00 | 1.04 | -13.29 | 187.60 | 40.13 | 255.22 | 0.6510 | 732.0 | 602.8 | |
| 0.00 | 1.95 | 0.00 | 1.27 | -13.54 | 187.61 | 40.14 | 254.85 | 0.6516 | 630.0 | 647.6 | |
| 0.00 | 1.16 | 0.00 | 0.75 | -13.42 | 187.43 | 39.95 | 254.98 | 0.6490 | 614.0 | 599.1 | |
| 0.00 | 0.80 | 0.00 | 0.52 | -14.37 | 187.42 | 39.95 | 253.53 | 0.6509 | 655.0 | 558.4 | |
| 0.00 | 0.98 | 0.00 | 0.62 | -10.27 | 185.78 | 38.30 | 259.62 | 0.6223 | 285.0 | 337.9 | |
| 0.00 | 0.80 | 0.00 | 0.50 | -10.52 | 185.66 | 38.18 | 259.20 | 0.6210 | 637.0 | 522.2 | |
| 0.00 | 1.24 | 0.00 | 0.79 | -12.07 | 185.82 | 38.35 | 256.75 | 0.6255 | -487.0 | -441.1 | |
| 0.00 | 3.55 | 0.00 | 2.24 | -11.20 | 185.56 | 38.09 | 258.10 | 0.6207 | -607.0 | -490.3 | |
| 0.00 | 3.20 | 0.00 | 2.01 | -11.19 | 185.17 | 37.69 | 258.04 | 0.6154 | -886.0 | -685.4 | |
| 0.00 | 0.71 | 0.00 | 0.44 | -7.93 | 184.72 | 37.24 | 263.32 | 0.6057 | 638.0 | 545.6 | |
| 0.00 | 2.58 | 0.00 | 1.61 | -11.44 | 185.09 | 37.62 | 257.63 | 0.6147 | -791.0 | -634.7 | |
| 0.00 | 2.04 | 0.00 | 1.27 | -8.04 | 184.46 | 36.98 | 263.13 | 0.6022 | -426.0 | -208.6 | |
| 3.29 | 5.95 | 2.05 | 3.71 | -11.27 | 184.64 | 37.16 | 257.80 | 0.6084 | -831.7 | -611.7 | |
| 0.44 | 2.13 | 0.28 | 1.32 | -10.31 | 184.50 | 37.03 | 259.37 | 0.6050 | -583.4 | -500.1 | |
| 0.00 | 1.42 | 0.00 | 0.88 | -9.63 | 184.03 | 36.56 | 260.42 | 0.5977 | -691.0 | -549.8 | |
| 16.08 | 22.21 | 9.94 | 13.73 | -10.84 | 184.12 | 36.64 | 258.42 | 0.6005 | -976.6 | -590.0 | |
| 4.09 | 6.13 | 2.50 | 3.74 | -12.27 | 182.95 | 35.48 | 255.77 | 0.5873 | 965.5 | 788.7 | |
| 0.00 | 2.04 | 0.00 | 1.25 | -12.52 | 182.84 | 35.36 | 255.32 | 0.5863 | 690.0 | 684.3 | |
| 0.00 | 1.24 | 0.00 | 0.75 | -10.84 | 182.41 | 34.93 | 258.10 | 0.5769 | -651.0 | -501.2 | |
| 0.00 | 1.07 | 0.00 | 0.63 | -15.45 | 179.80 | 32.33 | 249.20 | 0.5535 | 606.0 | 554.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
