SDO HMI 2014-04-23 12:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.30 | 329.86 | 130.54 | 850.29 | -12.16 | 226.66 | 79.73 | 258.52 | 0.9812 | 57.8 | 198.2 | |
|
previous
or next observation for the same group /

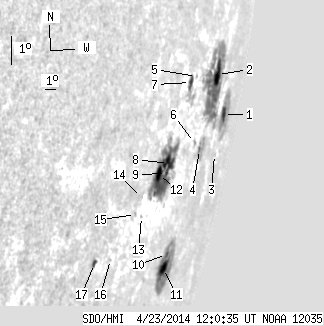

back to the solar disc SDO HMI 2014-04-23 12:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.95 | 144.72 | 23.12 | 450.39 | -11.07 | 230.36 | 83.44 | 259.44 | 0.9923 | 27.5 | 246.7 | |
| 11.37 | -1.00 | 32.49 | -1.00 | -10.07 | 227.61 | 80.68 | 260.62 | 0.9856 | 70.9 | 999999 | |
| 0.00 | 1.51 | 0.00 | 5.59 | -12.32 | 230.17 | 83.24 | 258.19 | 0.9917 | 291.0 | 279.4 | |
| 1.60 | 12.53 | 4.27 | 34.04 | -12.43 | 227.03 | 80.10 | 258.25 | 0.9834 | 290.9 | 338.9 | |
| 0.00 | 0.71 | 0.00 | 1.55 | -10.39 | 224.43 | 77.50 | 260.45 | 0.9748 | 34.0 | 48.8 | |
| 0.00 | 1.51 | 0.00 | 3.71 | -12.30 | 225.99 | 79.06 | 258.43 | 0.9801 | 83.0 | 139.1 | |
| 4.18 | 14.30 | 8.71 | 30.22 | -10.63 | 223.78 | 76.85 | 260.23 | 0.9722 | 365.9 | 292.3 | |
| 9.95 | 91.86 | 19.62 | 177.89 | -13.19 | 223.09 | 76.16 | 257.62 | 0.9690 | -330.8 | 232.4 | |
| 0.98 | -8.00 | 1.94 | -8.00 | -13.50 | 223.12 | 76.19 | 257.31 | 0.9691 | 120.5 | 999999 | |
| 2.04 | 53.75 | 4.91 | 132.52 | -15.80 | 225.89 | 78.96 | 254.86 | 0.9793 | 495.7 | -50.5 | |
| 7.64 | -10.00 | 18.42 | -10.00 | -16.23 | 226.03 | 79.10 | 254.42 | 0.9797 | 253.2 | 999999 | |
| 7.46 | -8.00 | 13.90 | -8.00 | -13.60 | 222.20 | 75.27 | 257.22 | 0.9651 | 52.4 | 999999 | |
| 0.00 | 0.71 | 0.00 | 1.26 | -14.97 | 221.43 | 74.51 | 255.81 | 0.9615 | 289.0 | 241.9 | |
| 0.00 | 2.13 | 0.00 | 3.67 | -14.42 | 220.92 | 73.99 | 256.39 | 0.9591 | 3.0 | 36.2 | |
| 0.00 | 1.24 | 0.00 | 2.12 | -14.96 | 220.73 | 73.80 | 255.83 | 0.9581 | -223.0 | -179.6 | |
| 0.00 | 0.89 | 0.00 | 1.41 | -16.48 | 219.40 | 72.48 | 254.25 | 0.9515 | -290.0 | -164.2 | |
| 2.13 | 4.00 | 3.16 | 5.92 | -16.72 | 217.99 | 71.06 | 253.98 | 0.9439 | -373.5 | -244.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
