SDO HMI 2014-04-23 16:02:05 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.18 | 252.66 | 105.43 | 790.40 | -12.29 | 226.42 | 81.71 | 258.28 | 0.9869 | -105.8 | 195.7 | |
|
previous
or next observation for the same group /

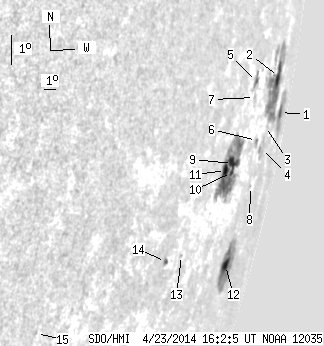

back to the solar disc SDO HMI 2014-04-23 16:02:05 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.09 | 20.96 | 22.15 | 120.16 | -11.06 | 230.36 | 85.65 | 259.30 | 0.9963 | -237.8 | -53.7 | |
| 7.99 | 76.11 | 30.00 | 273.88 | -10.16 | 227.90 | 83.19 | 260.37 | 0.9919 | -77.6 | 363.2 | |
| 0.00 | 0.53 | 0.00 | 1.83 | -11.77 | 227.12 | 82.41 | 258.80 | 0.9899 | 286.0 | 302.3 | |
| 0.00 | 10.30 | 0.00 | 35.42 | -12.44 | 227.26 | 82.55 | 258.12 | 0.9902 | 435.0 | 320.4 | |
| 1.51 | 6.04 | 3.76 | 14.99 | -10.64 | 223.93 | 79.22 | 260.11 | 0.9809 | 433.2 | 278.6 | |
| 0.71 | 3.46 | 2.11 | 10.34 | -12.30 | 225.92 | 81.20 | 258.33 | 0.9867 | -78.4 | 152.6 | |
| 0.00 | 1.24 | 0.00 | 3.15 | -11.12 | 224.09 | 79.38 | 259.61 | 0.9814 | 276.0 | 288.1 | |
| 0.00 | 0.80 | 0.00 | 2.57 | -13.66 | 226.78 | 82.06 | 256.91 | 0.9888 | 140.0 | 169.9 | |
| 5.86 | 85.52 | 13.26 | 191.94 | -13.26 | 222.88 | 78.17 | 257.48 | 0.9768 | -428.1 | 232.9 | |
| 1.86 | -9.00 | 4.30 | -9.00 | -13.53 | 223.04 | 78.32 | 257.20 | 0.9774 | 232.5 | 999999 | |
| 4.97 | -9.00 | 10.66 | -9.00 | -13.54 | 222.14 | 77.43 | 257.22 | 0.9740 | -225.6 | 999999 | |
| 5.77 | 42.81 | 16.84 | 128.38 | -16.20 | 225.95 | 81.24 | 254.37 | 0.9863 | 85.3 | -35.7 | |
| 0.00 | 0.89 | 0.00 | 1.60 | -16.41 | 219.45 | 74.74 | 254.31 | 0.9625 | -154.0 | -139.9 | |
| 1.42 | 3.11 | 2.35 | 5.13 | -16.73 | 217.93 | 73.21 | 253.99 | 0.9552 | -359.4 | -227.2 | |
| 0.00 | 0.89 | 0.00 | 1.01 | -19.69 | 208.99 | 64.28 | 250.47 | 0.9018 | -152.0 | -184.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
