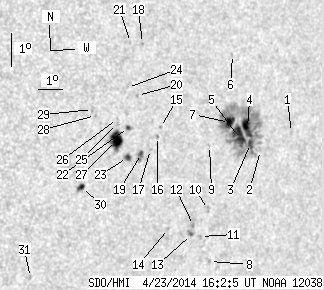

SDO HMI 2014-04-23 16:02:05 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.24 | 212.61 | 42.00 | 144.77 | -10.55 | 188.04 | 43.33 | 259.76 | 0.6874 | 277.4 | 258.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-23 16:02:05 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.83 | -10.16 | 191.41 | 46.70 | 260.63 | 0.7284 | 631.0 | 510.4 | |
| 0.00 | 0.80 | 0.00 | 0.56 | -10.78 | 190.16 | 45.45 | 259.67 | 0.7139 | -183.0 | -125.2 | |
| 3.46 | 148.76 | 2.42 | 103.16 | -10.60 | 189.69 | 44.97 | 259.89 | 0.7080 | 574.0 | 349.8 | |
| 12.08 | -3.00 | 8.41 | -3.00 | -10.12 | 189.47 | 44.76 | 260.54 | 0.7050 | 791.7 | 999999 | |
| 15.72 | -3.00 | 10.89 | -3.00 | -10.42 | 189.13 | 44.42 | 260.09 | 0.7011 | 892.8 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.36 | -7.96 | 188.49 | 43.78 | 263.58 | 0.6919 | 497.0 | 415.7 | |
| 7.99 | -3.00 | 5.49 | -3.00 | -10.02 | 188.68 | 43.96 | 260.63 | 0.6952 | 1048.3 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.80 | -14.26 | 188.69 | 43.98 | 254.55 | 0.7006 | 646.0 | 563.8 | |
| 0.00 | 0.89 | 0.00 | 0.60 | -10.76 | 187.96 | 43.24 | 259.48 | 0.6869 | 688.0 | 536.7 | |
| 0.00 | 2.31 | 0.00 | 1.58 | -12.69 | 188.29 | 43.58 | 256.73 | 0.6933 | 704.0 | 613.2 | |
| 0.00 | 1.42 | 0.00 | 0.97 | -13.53 | 188.13 | 43.42 | 255.50 | 0.6926 | 640.0 | 444.1 | |
| 0.00 | 1.69 | 0.00 | 1.15 | -13.21 | 187.76 | 43.05 | 255.89 | 0.6876 | 693.0 | 654.9 | |
| 0.53 | 2.49 | 0.36 | 1.69 | -13.49 | 187.74 | 43.03 | 255.49 | 0.6877 | 750.8 | 687.7 | |
| 0.00 | 1.42 | 0.00 | 0.95 | -13.36 | 186.74 | 42.03 | 255.49 | 0.6752 | 660.0 | 472.5 | |
| 0.00 | 1.24 | 0.00 | 0.82 | -10.33 | 185.85 | 41.14 | 259.89 | 0.6597 | 464.0 | 384.2 | |
| 0.00 | 1.07 | 0.00 | 0.70 | -10.60 | 185.77 | 41.06 | 259.46 | 0.6590 | 651.0 | 618.7 | |
| 0.00 | 0.89 | 0.00 | 0.58 | -11.01 | 185.55 | 40.84 | 258.81 | 0.6567 | -534.0 | -434.8 | |
| 0.00 | 0.89 | 0.00 | 0.57 | -7.84 | 184.79 | 40.07 | 263.63 | 0.6440 | 536.0 | 490.5 | |
| 1.33 | 5.68 | 0.87 | 3.70 | -11.15 | 185.21 | 40.50 | 258.55 | 0.6524 | -746.6 | -585.0 | |
| 0.00 | 1.15 | 0.00 | 0.75 | -9.41 | 184.78 | 40.07 | 261.18 | 0.6450 | -516.0 | -403.5 | |
| 0.00 | 0.80 | 0.00 | 0.51 | -7.83 | 184.31 | 39.60 | 263.62 | 0.6376 | -525.0 | -417.8 | |
| 1.33 | 3.11 | 0.86 | 2.01 | -10.40 | 184.57 | 39.85 | 259.63 | 0.6431 | -403.9 | -366.8 | |
| 2.13 | 3.46 | 1.38 | 2.24 | -11.30 | 184.67 | 39.96 | 258.23 | 0.6456 | -798.5 | -646.9 | |
| 0.00 | 0.80 | 0.00 | 0.51 | -9.19 | 184.36 | 39.64 | 261.48 | 0.6391 | -640.0 | -552.9 | |
| 0.00 | 1.42 | 0.00 | 0.91 | -10.30 | 184.11 | 39.40 | 259.72 | 0.6370 | -718.0 | -572.9 | |
| 0.00 | 0.27 | 0.00 | 0.17 | -10.15 | 184.09 | 39.38 | 259.95 | 0.6365 | -568.0 | -561.7 | |
| 14.83 | 19.98 | 9.52 | 12.82 | -10.81 | 184.15 | 39.44 | 258.92 | 0.6381 | -926.9 | -554.6 | |
| 0.00 | 1.07 | 0.00 | 0.67 | -10.10 | 183.22 | 38.50 | 259.91 | 0.6248 | -654.0 | -554.1 | |
| 0.00 | 1.95 | 0.00 | 1.23 | -9.93 | 183.07 | 38.36 | 260.17 | 0.6227 | -561.0 | -471.8 | |
| 2.84 | 4.80 | 1.80 | 3.04 | -12.30 | 183.01 | 38.30 | 256.36 | 0.6253 | 874.8 | 685.1 | |
| 0.00 | 1.42 | 0.00 | 0.89 | -15.14 | 181.54 | 36.83 | 251.44 | 0.6126 | 647.0 | 476.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
