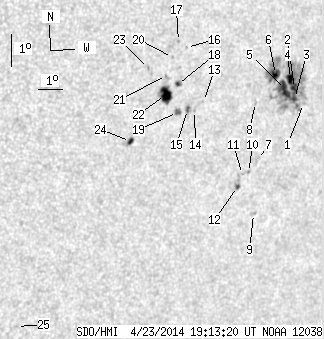

SDO HMI 2014-04-23 19:13:20 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.07 | 193.78 | 32.53 | 136.24 | -10.59 | 188.17 | 45.22 | 259.88 | 0.7108 | 156.5 | 295.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-23 19:13:20 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.42 | 0.00 | 1.03 | -10.74 | 190.09 | 47.14 | 259.87 | 0.7339 | -164.0 | -150.1 | |
| 4.44 | 138.19 | 3.20 | 98.88 | -10.31 | 189.60 | 46.65 | 260.41 | 0.7278 | 572.9 | 383.8 | |
| 2.13 | -2.00 | 1.54 | -2.00 | -10.61 | 189.65 | 46.70 | 260.01 | 0.7287 | 597.4 | 999999 | |
| 5.15 | -2.00 | 3.69 | -2.00 | -10.02 | 189.36 | 46.41 | 260.80 | 0.7249 | 830.3 | 999999 | |
| 8.88 | -2.00 | 6.35 | -2.00 | -10.37 | 189.20 | 46.25 | 260.31 | 0.7232 | 883.3 | 999999 | |
| 5.51 | -2.00 | 3.90 | -2.00 | -9.94 | 188.68 | 45.73 | 260.87 | 0.7167 | 1017.5 | 999999 | |
| 0.00 | 3.64 | 0.00 | 2.57 | -12.55 | 188.42 | 45.47 | 257.19 | 0.7159 | 444.0 | 382.9 | |
| 0.00 | 1.95 | 0.00 | 1.37 | -10.84 | 187.97 | 45.02 | 259.55 | 0.7088 | 390.0 | 455.1 | |
| 0.00 | 1.78 | 0.00 | 1.26 | -14.19 | 188.64 | 45.69 | 254.94 | 0.7207 | 354.0 | 324.2 | |
| 0.00 | 1.15 | 0.00 | 0.81 | -12.97 | 188.11 | 45.16 | 256.57 | 0.7128 | 694.0 | 611.1 | |
| 0.00 | 1.07 | 0.00 | 0.75 | -13.04 | 187.87 | 44.92 | 256.43 | 0.7100 | 678.0 | 613.5 | |
| 1.24 | 5.06 | 0.87 | 3.54 | -13.42 | 187.74 | 44.79 | 255.88 | 0.7089 | 721.1 | 667.3 | |
| 0.00 | 0.80 | 0.00 | 0.54 | -10.93 | 185.77 | 42.82 | 259.18 | 0.6817 | -457.0 | -325.7 | |
| 0.00 | 0.80 | 0.00 | 0.54 | -11.22 | 185.44 | 42.49 | 258.71 | 0.6780 | -449.0 | -380.7 | |
| 1.07 | 1.69 | 0.71 | 1.13 | -11.21 | 185.15 | 42.20 | 258.69 | 0.6742 | -702.0 | -490.4 | |
| 0.00 | 0.71 | 0.00 | 0.47 | -9.34 | 184.80 | 41.85 | 261.44 | 0.6681 | -435.0 | -420.8 | |
| 0.00 | 0.80 | 0.00 | 0.53 | -9.18 | 184.45 | 41.50 | 261.65 | 0.6634 | -497.0 | -441.3 | |
| 1.33 | 3.55 | 0.88 | 2.36 | -10.48 | 184.61 | 41.66 | 259.72 | 0.6666 | -517.1 | -348.4 | |
| 1.33 | 3.91 | 0.89 | 2.60 | -11.32 | 184.75 | 41.80 | 258.47 | 0.6694 | -749.5 | -615.6 | |
| 0.00 | 1.15 | 0.00 | 0.76 | -9.68 | 184.28 | 41.33 | 260.89 | 0.6616 | -476.0 | -464.2 | |
| 0.00 | 0.98 | 0.00 | 0.64 | -10.23 | 184.12 | 41.17 | 260.03 | 0.6600 | -598.0 | -437.0 | |
| 13.50 | 18.65 | 8.89 | 12.28 | -10.81 | 184.17 | 41.22 | 259.17 | 0.6613 | -873.8 | -517.2 | |
| 0.00 | 1.51 | 0.00 | 0.98 | -10.06 | 183.36 | 40.41 | 260.21 | 0.6500 | -705.0 | -602.1 | |
| 2.49 | 3.73 | 1.61 | 2.42 | -12.30 | 183.01 | 40.06 | 256.71 | 0.6484 | 813.0 | 705.3 | |
| 0.00 | 1.24 | 0.00 | 0.78 | -18.17 | 179.71 | 36.76 | 246.62 | 0.6217 | 560.0 | 367.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
