SDO HMI 2014-04-23 19:13:20 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.85 | 114.82 | 11.24 | 59.13 | -20.35 | 139.93 | -3.02 | 169.78 | 0.2740 | 327.1 | 137.0 | |
|
previous
or next observation for the same group /

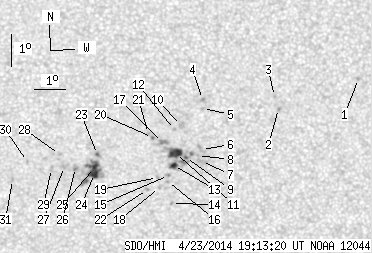

back to the solar disc SDO HMI 2014-04-23 19:13:20 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.42 | 0.00 | 0.72 | -17.88 | 146.76 | 3.82 | 195.72 | 0.2348 | 926.0 | 717.0 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -18.82 | 144.24 | 1.29 | 185.04 | 0.2428 | 889.0 | 803.1 | |
| 0.00 | 0.98 | 0.00 | 0.50 | -18.45 | 144.11 | 1.16 | 184.67 | 0.2363 | 915.0 | 646.1 | |
| 0.00 | 1.69 | 0.00 | 0.86 | -18.54 | 141.82 | -1.13 | 175.46 | 0.2378 | 1031.0 | 893.4 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -18.82 | 141.82 | -1.13 | 175.55 | 0.2425 | 750.0 | 592.4 | |
| 0.00 | 3.73 | 0.00 | 1.92 | -20.09 | 141.77 | -1.18 | 175.80 | 0.2641 | 804.0 | 743.5 | |
| 0.00 | 4.62 | 0.00 | 2.38 | -20.47 | 141.77 | -1.18 | 175.89 | 0.2705 | 828.0 | 662.9 | |
| 0.00 | 1.07 | 0.00 | 0.55 | -20.28 | 141.64 | -1.31 | 175.39 | 0.2675 | 915.0 | 711.9 | |
| 0.62 | 32.59 | 0.32 | 16.76 | -20.34 | 141.26 | -1.69 | 174.07 | 0.2691 | 1230.6 | 733.2 | |
| 0.00 | 4.09 | 0.00 | 2.09 | -19.34 | 141.14 | -1.81 | 173.20 | 0.2525 | 928.0 | 761.3 | |
| 8.53 | -9.00 | 4.38 | -9.00 | -20.22 | 140.94 | -2.01 | 172.90 | 0.2676 | 1121.8 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.45 | -19.47 | 140.92 | -2.03 | 172.43 | 0.2551 | 786.0 | 618.5 | |
| 3.11 | -9.00 | 1.60 | -9.00 | -20.59 | 140.87 | -2.08 | 172.84 | 0.2740 | 854.3 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.60 | -21.78 | 140.78 | -2.17 | 173.12 | 0.2941 | 785.0 | 601.4 | |
| 0.00 | 1.86 | 0.00 | 0.96 | -20.90 | 140.70 | -2.25 | 172.43 | 0.2796 | 1008.0 | 701.9 | |
| 0.00 | 1.33 | 0.00 | 0.69 | -21.09 | 140.67 | -2.28 | 172.41 | 0.2828 | 803.0 | 690.8 | |
| 0.00 | 5.24 | 0.00 | 2.69 | -19.87 | 140.53 | -2.42 | 171.25 | 0.2628 | 859.0 | 737.6 | |
| 0.00 | 1.86 | 0.00 | 0.96 | -21.28 | 140.40 | -2.55 | 171.66 | 0.2865 | 692.0 | 544.6 | |
| 0.00 | 1.15 | 0.00 | 0.60 | -20.96 | 140.35 | -2.60 | 171.29 | 0.2814 | 921.0 | 685.4 | |
| 0.36 | 1.42 | 0.18 | 0.73 | -19.71 | 140.21 | -2.74 | 170.02 | 0.2610 | 986.2 | 738.3 | |
| 0.00 | 1.42 | 0.00 | 0.73 | -19.59 | 140.08 | -2.87 | 169.48 | 0.2593 | 797.0 | 570.8 | |
| 0.00 | 1.15 | 0.00 | 0.60 | -21.34 | 140.01 | -2.94 | 170.44 | 0.2885 | 690.0 | 529.8 | |
| 0.53 | 1.60 | 0.27 | 0.82 | -20.23 | 138.43 | -4.52 | 164.39 | 0.2762 | -1062.0 | -892.1 | |
| 5.59 | 29.13 | 2.89 | 15.05 | -20.83 | 138.31 | -4.64 | 164.63 | 0.2863 | -1120.3 | -825.9 | |
| 3.11 | -24.00 | 1.60 | -24.00 | -20.64 | 138.32 | -4.63 | 164.46 | 0.2832 | -1257.4 | 999999 | |
| 0.00 | 3.29 | 0.00 | 1.70 | -20.63 | 137.70 | -5.24 | 162.52 | 0.2861 | -924.0 | -805.8 | |
| 0.00 | 3.73 | 0.00 | 1.93 | -20.60 | 137.35 | -5.60 | 161.38 | 0.2874 | -833.0 | -714.0 | |
| 0.00 | 1.42 | 0.00 | 0.73 | -20.22 | 137.20 | -5.75 | 160.47 | 0.2822 | -938.0 | -775.4 | |
| 0.00 | 2.75 | 0.00 | 1.42 | -20.66 | 136.93 | -6.02 | 160.17 | 0.2906 | -839.0 | -658.5 | |
| 0.00 | 0.98 | 0.00 | 0.51 | -20.43 | 136.16 | -6.79 | 157.58 | 0.2917 | -794.0 | -686.8 | |
| 0.00 | 1.78 | 0.00 | 0.92 | -20.99 | 135.65 | -7.30 | 156.88 | 0.3035 | -959.0 | -670.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
