SDO HMI 2014-04-23 19:13:20 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.79 | 0.00 | 6.43 | -10.79 | 139.78 | -3.17 | 154.53 | 0.1763 | 637.0 | 527.7 | |
|
previous
or next observation for the same group /

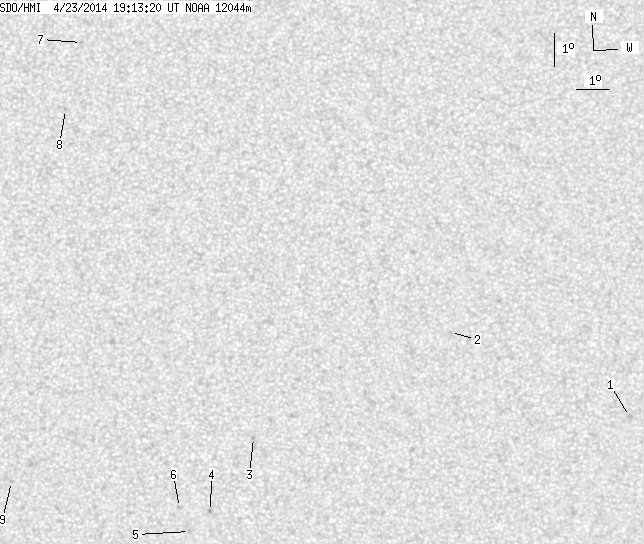

back to the solar disc SDO HMI 2014-04-23 19:13:20 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.40 | 0.00 | 1.21 | -11.76 | 150.78 | 7.83 | 227.92 | 0.1805 | 865.0 | 693.7 | |
| 0.00 | 1.33 | 0.00 | 0.66 | -9.25 | 145.23 | 2.28 | 207.30 | 0.0861 | 735.0 | 593.1 | |
| 0.00 | 1.42 | 0.00 | 0.71 | -12.42 | 139.17 | -3.78 | 153.89 | 0.1468 | 981.0 | 803.5 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -14.67 | 137.79 | -5.16 | 152.92 | 0.1920 | -919.0 | -745.5 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -15.27 | 137.12 | -5.83 | 151.51 | 0.2065 | 808.0 | 638.2 | |
| 0.00 | 1.78 | 0.00 | 0.90 | -14.54 | 136.82 | -6.13 | 148.42 | 0.1981 | 910.0 | 711.3 | |
| 0.00 | 1.42 | 0.00 | 0.71 | -0.44 | 134.06 | -8.89 | 63.65 | 0.1732 | 759.0 | 575.9 | |
| 0.00 | 0.98 | 0.00 | 0.49 | -2.46 | 133.56 | -9.39 | 75.77 | 0.1689 | 813.0 | 712.5 | |
| 0.00 | 0.89 | 0.00 | 0.45 | -13.67 | 131.58 | -11.37 | 128.83 | 0.2471 | 781.0 | 651.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
