SDO HMI 2014-04-23 22:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.87 | 146.94 | 129.25 | 611.70 | -12.90 | 225.17 | 83.77 | 257.56 | 0.9920 | 155.7 | 159.5 | |
|
previous
or next observation for the same group /

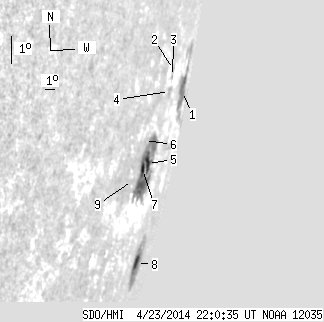

back to the solar disc SDO HMI 2014-04-23 22:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.35 | 35.36 | 74.20 | 236.35 | -10.72 | 227.57 | 86.17 | 259.61 | 0.9971 | 361.2 | 208.3 | |
| 0.00 | 1.51 | 0.00 | 5.22 | -10.34 | 223.91 | 82.51 | 260.23 | 0.9904 | 222.0 | 251.7 | |
| 0.00 | 0.89 | 0.00 | 3.07 | -10.56 | 223.97 | 82.57 | 260.01 | 0.9905 | 296.0 | 269.8 | |
| 0.00 | 4.62 | 0.00 | 16.16 | -11.02 | 223.93 | 82.53 | 259.54 | 0.9903 | 456.0 | 340.3 | |
| 5.86 | 71.15 | 17.36 | 208.80 | -13.36 | 222.60 | 81.19 | 257.25 | 0.9865 | -177.9 | 210.4 | |
| 0.00 | 0.98 | 0.00 | 2.52 | -12.77 | 221.18 | 79.77 | 257.92 | 0.9824 | -9.0 | -25.8 | |
| 5.06 | -5.00 | 14.05 | -5.00 | -13.60 | 221.95 | 80.55 | 257.03 | 0.9846 | -72.2 | 999999 | |
| 5.60 | 30.74 | 23.64 | 135.38 | -16.19 | 225.84 | 84.43 | 254.23 | 0.9937 | -119.0 | -17.4 | |
| 0.00 | 1.69 | 0.00 | 4.20 | -14.04 | 220.75 | 79.34 | 256.63 | 0.9808 | 50.0 | 53.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
