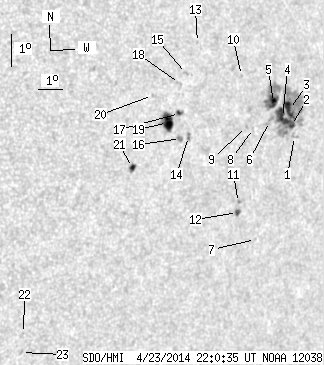

SDO HMI 2014-04-23 22:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.69 | 168.61 | 34.78 | 121.41 | -10.56 | 187.94 | 46.54 | 260.02 | 0.7264 | 289.2 | 222.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-23 22:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.11 | 0.00 | 2.31 | -10.94 | 189.83 | 48.42 | 259.69 | 0.7488 | 488.0 | 380.7 | |
| 2.49 | 84.48 | 1.84 | 62.41 | -10.62 | 189.62 | 48.21 | 260.11 | 0.7462 | 552.5 | 218.0 | |
| 10.22 | -2.00 | 7.54 | -2.00 | -10.14 | 189.43 | 48.02 | 260.74 | 0.7438 | 657.5 | 999999 | |
| 13.24 | -2.00 | 9.73 | -2.00 | -10.40 | 189.16 | 47.76 | 260.37 | 0.7408 | 807.2 | 999999 | |
| 4.71 | 28.60 | 3.43 | 20.78 | -9.97 | 188.67 | 47.26 | 260.92 | 0.7349 | 922.3 | 550.1 | |
| 0.00 | 4.62 | 0.00 | 3.36 | -10.56 | 188.60 | 47.19 | 260.12 | 0.7344 | 718.0 | 626.0 | |
| 0.00 | 0.27 | 0.00 | 0.20 | -14.16 | 188.81 | 47.41 | 255.26 | 0.7404 | 528.0 | 467.7 | |
| 0.00 | 0.71 | 0.00 | 0.51 | -10.81 | 187.93 | 46.52 | 259.72 | 0.7267 | 619.0 | 511.8 | |
| 0.00 | 1.24 | 0.00 | 0.89 | -10.77 | 187.61 | 46.20 | 259.75 | 0.7229 | 598.0 | 516.4 | |
| 0.00 | 0.89 | 0.00 | 0.63 | -9.25 | 187.11 | 45.71 | 261.83 | 0.7160 | 365.0 | 368.8 | |
| 0.00 | 1.15 | 0.00 | 0.83 | -13.08 | 187.76 | 46.35 | 256.57 | 0.7270 | 685.0 | 633.8 | |
| 1.78 | 3.29 | 1.28 | 2.37 | -13.39 | 187.79 | 46.38 | 256.16 | 0.7277 | 688.4 | 586.4 | |
| 0.00 | 0.89 | 0.00 | 0.61 | -8.36 | 185.08 | 43.68 | 262.99 | 0.6907 | 447.0 | 391.8 | |
| 0.00 | 2.93 | 0.00 | 2.01 | -11.22 | 185.17 | 43.76 | 258.87 | 0.6938 | -618.0 | -518.8 | |
| 0.00 | 2.13 | 0.00 | 1.45 | -9.32 | 184.76 | 43.35 | 261.58 | 0.6871 | -571.0 | -466.3 | |
| 0.00 | 3.11 | 0.00 | 2.12 | -11.30 | 184.84 | 43.44 | 258.72 | 0.6898 | -756.0 | -623.3 | |
| 1.33 | 3.64 | 0.91 | 2.48 | -10.54 | 184.66 | 43.26 | 259.79 | 0.6869 | -383.1 | -227.5 | |
| 0.00 | 2.31 | 0.00 | 1.56 | -9.64 | 184.51 | 43.11 | 261.09 | 0.6842 | -539.0 | -481.0 | |
| 12.26 | 17.06 | 8.28 | 11.51 | -10.84 | 184.21 | 42.80 | 259.30 | 0.6815 | -810.6 | -587.1 | |
| 0.00 | 1.07 | 0.00 | 0.71 | -10.06 | 183.45 | 42.05 | 260.37 | 0.6712 | -571.0 | -479.5 | |
| 2.66 | 4.80 | 1.77 | 3.19 | -12.28 | 183.02 | 41.61 | 257.00 | 0.6682 | 701.1 | 536.3 | |
| 0.00 | 0.80 | 0.00 | 0.51 | -17.57 | 179.74 | 38.33 | 248.15 | 0.6393 | 491.0 | 352.3 | |
| 0.00 | 1.51 | 0.00 | 0.97 | -18.15 | 179.81 | 38.40 | 247.29 | 0.6422 | 457.0 | 304.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
