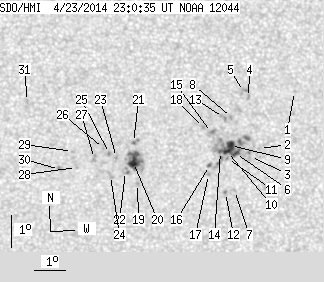

SDO HMI 2014-04-23 23:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.58 | 124.80 | 9.56 | 64.23 | -20.41 | 139.72 | -1.13 | 176.24 | 0.2713 | 173.3 | 91.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-23 23:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.45 | -18.57 | 143.31 | 2.46 | 189.75 | 0.2412 | 641.0 | 544.4 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -20.34 | 142.21 | 1.36 | 184.76 | 0.2688 | 692.0 | 517.0 | |
| 0.00 | 0.71 | 0.00 | 0.37 | -20.59 | 141.92 | 1.07 | 183.69 | 0.2726 | 377.0 | 421.9 | |
| 0.00 | 2.13 | 0.00 | 1.09 | -18.75 | 141.85 | 1.00 | 183.93 | 0.2415 | 904.0 | 670.2 | |
| 0.00 | 3.46 | 0.00 | 1.77 | -18.57 | 141.69 | 0.84 | 183.35 | 0.2381 | 598.0 | 796.9 | |
| 2.49 | 45.13 | 1.28 | 23.20 | -20.50 | 141.44 | 0.59 | 182.04 | 0.2706 | 897.6 | 723.8 | |
| 0.00 | 0.98 | 0.00 | 0.51 | -21.66 | 141.41 | 0.56 | 181.80 | 0.2902 | 798.0 | 682.6 | |
| 0.00 | 1.60 | 0.00 | 0.82 | -19.38 | 141.31 | 0.46 | 181.72 | 0.2516 | 841.0 | 743.4 | |
| 4.98 | -6.00 | 2.56 | -6.00 | -20.25 | 141.28 | 0.43 | 181.51 | 0.2663 | 1255.8 | 999999 | |
| 3.29 | -6.00 | 1.69 | -6.00 | -20.44 | 141.18 | 0.33 | 181.15 | 0.2695 | 1049.5 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -20.66 | 141.18 | 0.33 | 181.14 | 0.2732 | 728.0 | 617.6 | |
| 0.00 | 1.33 | 0.00 | 0.69 | -21.72 | 141.12 | 0.27 | 180.85 | 0.2911 | 837.0 | 729.9 | |
| 0.00 | 3.91 | 0.00 | 2.00 | -19.38 | 141.05 | 0.20 | 180.76 | 0.2515 | 855.0 | 718.2 | |
| 0.80 | -6.00 | 0.41 | -6.00 | -20.44 | 140.96 | 0.10 | 180.37 | 0.2694 | 720.9 | 999999 | |
| 0.00 | 4.44 | 0.00 | 2.28 | -19.84 | 140.67 | -0.18 | 179.33 | 0.2594 | 883.0 | 629.5 | |
| 0.62 | 2.13 | 0.32 | 1.10 | -20.88 | 140.60 | -0.25 | 179.15 | 0.2768 | 810.1 | 604.6 | |
| 0.00 | 1.42 | 0.00 | 0.73 | -21.16 | 140.57 | -0.28 | 179.06 | 0.2816 | 735.0 | 595.4 | |
| 0.00 | 1.69 | 0.00 | 0.86 | -19.69 | 140.41 | -0.44 | 178.38 | 0.2568 | 963.0 | 715.1 | |
| 0.00 | 1.60 | 0.00 | 0.83 | -21.43 | 138.27 | -2.58 | 171.62 | 0.2893 | -841.0 | -648.4 | |
| 6.04 | 26.65 | 3.12 | 13.74 | -20.77 | 138.15 | -2.70 | 170.86 | 0.2787 | -1144.8 | -787.3 | |
| 0.36 | 3.11 | 0.18 | 1.60 | -20.15 | 138.16 | -2.69 | 170.51 | 0.2683 | -1080.5 | -792.8 | |
| 0.00 | 4.18 | 0.00 | 2.16 | -21.05 | 137.89 | -2.96 | 170.17 | 0.2841 | -526.0 | -641.5 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -20.61 | 137.61 | -3.25 | 168.95 | 0.2777 | -960.0 | -798.5 | |
| 0.00 | 3.29 | 0.00 | 1.70 | -21.18 | 137.40 | -3.45 | 168.69 | 0.2876 | -507.0 | -536.6 | |
| 0.00 | 1.78 | 0.00 | 0.92 | -20.49 | 137.38 | -3.47 | 168.11 | 0.2763 | -1071.0 | -885.0 | |
| 0.00 | 0.80 | 0.00 | 0.41 | -20.33 | 137.20 | -3.66 | 167.35 | 0.2744 | -1003.0 | -841.0 | |
| 0.00 | 4.00 | 0.00 | 2.06 | -20.64 | 136.90 | -3.96 | 166.64 | 0.2806 | -924.0 | -749.2 | |
| 0.00 | 1.60 | 0.00 | 0.83 | -20.92 | 136.31 | -4.55 | 165.01 | 0.2876 | -340.0 | -334.9 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -20.42 | 136.19 | -4.66 | 164.15 | 0.2800 | -735.0 | -651.6 | |
| 0.00 | 2.04 | 0.00 | 1.06 | -20.98 | 135.75 | -5.10 | 163.36 | 0.2910 | -790.0 | -692.6 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -18.85 | 134.80 | -6.05 | 157.58 | 0.2627 | 806.0 | 675.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
