SDO HMI 2014-04-24 00:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.75 | 0.00 | 6.08 | -20.16 | 164.31 | 24.01 | 235.92 | 0.4735 | -555.2 | -487.2 | |
|
previous
or next observation for the same group /

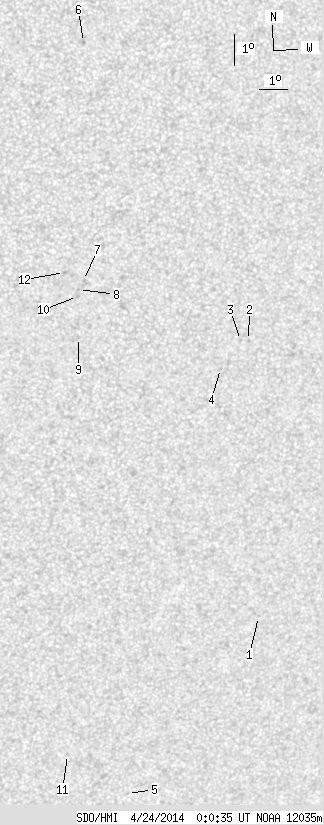

back to the solar disc SDO HMI 2014-04-24 00:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.44 | 0.00 | 0.27 | -27.55 | 170.61 | 30.31 | 228.50 | 0.5996 | -557.0 | -481.2 | |
| 0.00 | 1.24 | 0.00 | 0.72 | -18.83 | 168.15 | 27.85 | 240.47 | 0.5102 | -531.0 | -449.6 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -18.84 | 167.87 | 27.57 | 240.23 | 0.5066 | -554.0 | -483.5 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -19.74 | 167.31 | 27.01 | 238.18 | 0.5050 | -611.0 | -534.5 | |
| 0.00 | 0.53 | 0.00 | 0.34 | -33.64 | 167.33 | 27.03 | 217.73 | 0.6205 | 457.0 | 480.0 | |
| 0.00 | 1.16 | 0.00 | 0.62 | -9.92 | 161.45 | 21.15 | 255.25 | 0.3691 | -829.0 | -685.8 | |
| 0.00 | 0.53 | 0.00 | 0.29 | -17.17 | 162.13 | 21.83 | 238.38 | 0.4190 | -557.0 | -514.5 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -17.45 | 162.00 | 21.70 | 237.64 | 0.4193 | -806.0 | -650.9 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -18.94 | 162.19 | 21.89 | 234.80 | 0.4334 | -491.0 | -315.6 | |
| 0.00 | 1.24 | 0.00 | 0.68 | -17.67 | 161.99 | 21.69 | 237.17 | 0.4208 | -651.0 | -528.9 | |
| 0.00 | 1.07 | 0.00 | 0.65 | -32.39 | 164.54 | 24.24 | 216.51 | 0.5849 | -619.0 | -491.2 | |
| 0.00 | 1.33 | 0.00 | 0.72 | -16.94 | 161.46 | 21.16 | 238.15 | 0.4083 | -914.0 | -743.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
