SDO HMI 2014-04-24 01:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.66 | 120.42 | 128.28 | 676.71 | -12.78 | 225.21 | 85.46 | 257.58 | 0.9951 | 140.3 | 166.4 | |
|
previous
or next observation for the same group /

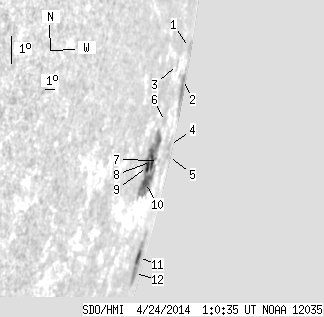

back to the solar disc SDO HMI 2014-04-24 01:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.98 | 0.00 | 60.78 | -9.49 | 227.33 | 87.58 | 260.74 | 0.9987 | 214.0 | 202.8 | |
| 0.71 | 18.66 | 6.05 | 197.88 | -10.49 | 227.10 | 87.35 | 259.75 | 0.9984 | 331.0 | 275.6 | |
| 0.00 | 1.78 | 0.00 | 7.81 | -10.30 | 223.93 | 84.18 | 260.17 | 0.9939 | 120.0 | 146.6 | |
| 0.00 | 2.84 | 0.00 | 20.10 | -12.56 | 226.79 | 87.04 | 257.70 | 0.9979 | 132.0 | 136.4 | |
| 0.00 | 2.49 | 0.00 | 25.15 | -12.84 | 227.55 | 87.80 | 257.37 | 0.9987 | 311.0 | 240.0 | |
| 0.00 | 3.82 | 0.00 | 15.42 | -12.10 | 223.44 | 83.69 | 258.39 | 0.9927 | 149.0 | 105.7 | |
| 0.00 | 1.87 | 0.00 | 8.16 | -13.25 | 224.15 | 84.40 | 257.19 | 0.9940 | 316.0 | 275.5 | |
| 4.89 | 61.76 | 17.21 | 215.03 | -13.42 | 222.49 | 82.74 | 257.11 | 0.9905 | -161.0 | 71.6 | |
| 3.47 | -8.00 | 11.30 | -8.00 | -13.62 | 221.90 | 82.15 | 256.93 | 0.9890 | -89.3 | 999999 | |
| 12.62 | -8.00 | 43.77 | -8.00 | -14.09 | 222.29 | 82.54 | 256.44 | 0.9899 | 449.9 | 999999 | |
| 5.24 | 22.22 | 28.93 | 126.38 | -16.15 | 225.78 | 86.03 | 254.18 | 0.9964 | -108.9 | 26.4 | |
| 3.73 | -11.00 | 21.02 | -11.00 | -16.64 | 226.02 | 86.27 | 253.68 | 0.9967 | 135.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
