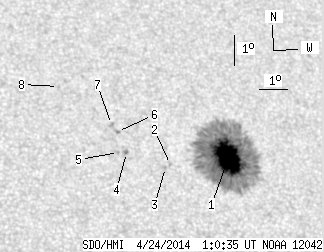

SDO HMI 2014-04-24 01:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.99 | 354.78 | 33.81 | 214.11 | 17.83 | 166.52 | 26.77 | 311.35 | 0.5733 | -866.4 | -350.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-24 01:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.99 | 344.02 | 33.81 | 207.79 | 17.82 | 166.63 | 26.88 | 311.21 | 0.5743 | -1161.5 | -380.6 | |
| 0.00 | 1.33 | 0.00 | 0.79 | 17.51 | 164.54 | 24.79 | 313.03 | 0.5491 | -249.0 | -163.3 | |
| 0.00 | 0.89 | 0.00 | 0.52 | 17.40 | 164.35 | 24.60 | 313.10 | 0.5461 | 631.0 | 499.3 | |
| 0.00 | 1.87 | 0.00 | 1.09 | 17.85 | 163.06 | 23.31 | 315.22 | 0.5369 | 832.0 | 729.3 | |
| 0.00 | 1.16 | 0.00 | 0.68 | 17.84 | 162.78 | 23.03 | 315.54 | 0.5339 | 809.0 | 649.1 | |
| 0.00 | 2.04 | 0.00 | 1.20 | 18.53 | 162.85 | 23.10 | 316.40 | 0.5415 | 637.0 | 518.7 | |
| 0.00 | 2.58 | 0.00 | 1.52 | 18.75 | 162.67 | 22.92 | 316.91 | 0.5420 | 627.0 | 544.8 | |
| 0.00 | 0.89 | 0.00 | 0.52 | 19.95 | 161.02 | 21.27 | 320.55 | 0.5387 | 627.0 | 421.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
