SDO HMI 2014-04-24 01:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.44 | 298.41 | 22.87 | 170.01 | -23.89 | 116.45 | -23.29 | 132.65 | 0.4929 | 482.1 | 291.0 | |
|
previous
or next observation for the same group /

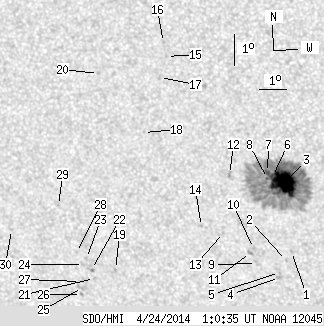

back to the solar disc SDO HMI 2014-04-24 01:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.56 | -25.93 | 116.96 | -22.79 | 136.36 | 0.5068 | 791.0 | 625.6 | |
| 0.00 | 1.24 | 0.00 | 0.72 | -26.21 | 116.71 | -23.04 | 136.51 | 0.5121 | 839.0 | 670.1 | |
| 37.86 | 264.03 | 21.41 | 149.57 | -23.74 | 117.09 | -22.65 | 133.06 | 0.4845 | 1228.9 | 363.3 | |
| 0.00 | 1.78 | 0.00 | 1.03 | -26.75 | 116.34 | -23.41 | 136.89 | 0.5212 | 695.0 | 577.8 | |
| 0.00 | 0.71 | 0.00 | 0.41 | -26.59 | 116.38 | -23.37 | 136.69 | 0.5193 | 764.0 | 634.5 | |
| 0.27 | -3.00 | 0.15 | -3.00 | -23.51 | 116.75 | -23.00 | 132.28 | 0.4863 | 865.7 | 999999 | |
| 1.78 | -3.00 | 1.01 | -3.00 | -23.38 | 116.59 | -23.16 | 131.88 | 0.4868 | 766.6 | 999999 | |
| 0.53 | -3.00 | 0.30 | -3.00 | -23.57 | 116.56 | -23.19 | 132.16 | 0.4889 | 739.7 | 999999 | |
| 0.00 | 2.13 | 0.00 | 1.24 | -26.27 | 115.60 | -24.15 | 135.37 | 0.5243 | 456.0 | 473.3 | |
| 0.00 | 1.33 | 0.00 | 0.77 | -25.79 | 115.60 | -24.15 | 134.63 | 0.5198 | 826.0 | 596.4 | |
| 0.00 | 2.13 | 0.00 | 1.24 | -25.91 | 115.46 | -24.29 | 134.67 | 0.5224 | 650.0 | 552.3 | |
| 0.00 | 2.13 | 0.00 | 1.22 | -23.39 | 115.22 | -24.53 | 130.44 | 0.5026 | -745.0 | -630.6 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -25.23 | 114.61 | -25.13 | 132.76 | 0.5254 | 579.0 | 539.4 | |
| 0.00 | 0.80 | 0.00 | 0.47 | -25.01 | 113.85 | -25.90 | 131.66 | 0.5318 | 671.0 | 476.8 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -19.61 | 113.67 | -26.08 | 122.38 | 0.4923 | -783.0 | -644.6 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -19.17 | 113.64 | -26.11 | 121.55 | 0.4897 | -624.0 | -468.1 | |
| 0.00 | 1.42 | 0.00 | 0.81 | -20.25 | 113.31 | -26.44 | 123.23 | 0.5014 | -683.0 | -613.6 | |
| 0.00 | 0.62 | 0.00 | 0.36 | -21.95 | 112.39 | -27.36 | 125.37 | 0.5248 | -698.0 | -510.9 | |
| 0.00 | 0.80 | 0.00 | 0.49 | -26.27 | 110.28 | -29.47 | 130.35 | 0.5810 | -666.0 | -547.6 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -20.04 | 111.13 | -28.61 | 121.11 | 0.5276 | -760.0 | -606.2 | |
| 0.00 | 1.16 | 0.00 | 0.71 | -26.53 | 109.39 | -30.36 | 130.00 | 0.5926 | -790.0 | -623.8 | |
| 0.00 | 1.51 | 0.00 | 0.93 | -26.23 | 109.36 | -30.39 | 129.55 | 0.5907 | -751.0 | -728.9 | |
| 0.00 | 1.42 | 0.00 | 0.87 | -25.87 | 109.27 | -30.48 | 128.95 | 0.5891 | -660.0 | -555.3 | |
| 0.00 | 1.69 | 0.00 | 1.04 | -26.06 | 109.10 | -30.65 | 129.09 | 0.5923 | -584.0 | -526.2 | |
| 0.00 | 4.27 | 0.00 | 2.64 | -26.80 | 108.84 | -30.91 | 129.96 | 0.6005 | -592.0 | -478.5 | |
| 0.00 | 1.33 | 0.00 | 0.83 | -27.02 | 108.73 | -31.02 | 130.20 | 0.6033 | -569.0 | -431.1 | |
| 0.00 | 0.62 | 0.00 | 0.38 | -26.60 | 108.82 | -30.93 | 129.66 | 0.5993 | -535.0 | -502.0 | |
| 0.00 | 1.24 | 0.00 | 0.76 | -25.66 | 108.94 | -30.81 | 128.39 | 0.5912 | -618.0 | -458.0 | |
| 0.00 | 0.80 | 0.00 | 0.49 | -24.13 | 108.67 | -31.08 | 125.90 | 0.5838 | -665.0 | -525.3 | |
| 0.00 | 0.53 | 0.00 | 0.33 | -24.82 | 106.63 | -33.12 | 125.49 | 0.6113 | -67.0 | -110.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
