SDO HMI 2014-04-24 04:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.72 | 0.00 | 7.09 | -16.74 | 162.36 | 24.26 | 241.90 | 0.4555 | -697.6 | -625.2 | |
|
previous
or next observation for the same group /

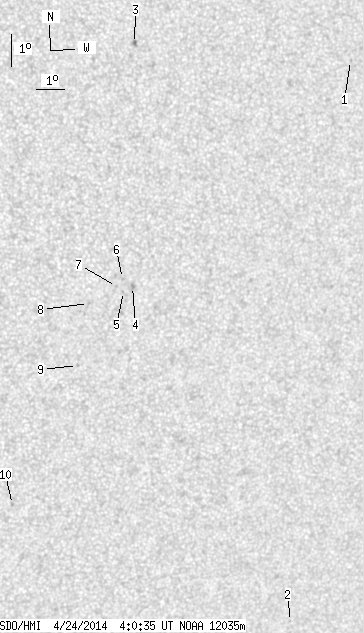

back to the solar disc SDO HMI 2014-04-24 04:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.62 | -10.09 | 168.97 | 30.87 | 258.45 | 0.5176 | -489.0 | -431.2 | |
| 0.00 | 0.53 | 0.00 | 0.34 | -27.62 | 170.39 | 32.29 | 229.90 | 0.6211 | -553.0 | -442.7 | |
| 0.00 | 2.58 | 0.00 | 1.40 | -9.85 | 161.50 | 23.40 | 256.48 | 0.4042 | -977.0 | -821.6 | |
| 0.00 | 2.13 | 0.00 | 1.18 | -17.26 | 162.21 | 24.11 | 240.36 | 0.4507 | -803.0 | -650.3 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -17.42 | 161.92 | 23.83 | 239.77 | 0.4479 | -705.0 | -576.8 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -17.03 | 161.83 | 23.74 | 240.50 | 0.4441 | -757.0 | -699.2 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -17.28 | 161.66 | 23.56 | 239.82 | 0.4434 | -721.0 | -625.0 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -17.83 | 160.77 | 22.67 | 237.82 | 0.4354 | -584.0 | -571.2 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -19.77 | 160.67 | 22.57 | 233.88 | 0.4489 | -656.0 | -491.7 | |
| 0.00 | 1.51 | 0.00 | 0.85 | -24.21 | 159.10 | 21.00 | 224.16 | 0.4712 | -731.0 | -584.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
