SDO HMI 2014-04-24 04:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.03 | 135.32 | 29.60 | 103.87 | -10.48 | 188.00 | 49.91 | 260.35 | 0.7649 | 201.2 | 260.9 | |
|
previous
or next observation for the same group /

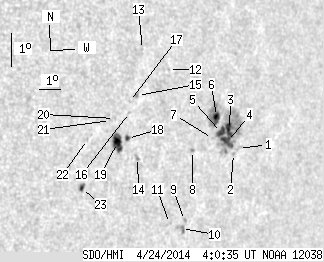

back to the solar disc SDO HMI 2014-04-24 04:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.76 | 0.00 | 2.20 | -10.67 | 189.95 | 51.85 | 260.22 | 0.7865 | -72.0 | 62.0 | |
| 0.00 | 1.24 | 0.00 | 0.99 | -10.83 | 189.74 | 51.64 | 260.00 | 0.7843 | 422.0 | 372.2 | |
| 7.56 | 67.30 | 5.96 | 53.07 | -10.13 | 189.38 | 51.28 | 260.89 | 0.7801 | 668.9 | 249.4 | |
| 7.65 | -3.00 | 6.03 | -3.00 | -10.49 | 189.36 | 51.26 | 260.42 | 0.7801 | 702.9 | 999999 | |
| 5.42 | -3.00 | 4.24 | -3.00 | -10.24 | 189.01 | 50.91 | 260.73 | 0.7762 | 824.8 | 999999 | |
| 3.91 | 22.31 | 3.04 | 17.29 | -9.77 | 188.67 | 50.57 | 261.32 | 0.7723 | 992.4 | 576.5 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -10.45 | 188.62 | 50.52 | 260.44 | 0.7720 | 608.0 | 636.0 | |
| 0.00 | 1.60 | 0.00 | 1.22 | -10.87 | 187.75 | 49.65 | 259.84 | 0.7627 | 663.0 | 595.2 | |
| 0.00 | 1.51 | 0.00 | 1.16 | -13.00 | 187.90 | 49.80 | 257.06 | 0.7659 | 573.0 | 581.8 | |
| 0.00 | 5.25 | 0.00 | 4.02 | -13.25 | 187.82 | 49.73 | 256.72 | 0.7653 | 645.0 | 549.7 | |
| 0.00 | 1.24 | 0.00 | 0.94 | -13.14 | 187.22 | 49.12 | 256.81 | 0.7585 | 429.0 | 404.4 | |
| 0.00 | 1.24 | 0.00 | 0.92 | -8.50 | 186.17 | 48.07 | 262.92 | 0.7438 | 324.0 | 324.7 | |
| 0.00 | 1.16 | 0.00 | 0.83 | -7.97 | 184.91 | 46.81 | 263.61 | 0.7289 | 398.0 | 314.4 | |
| 0.00 | 2.22 | 0.00 | 1.62 | -11.24 | 185.27 | 47.18 | 259.16 | 0.7348 | -623.0 | -391.8 | |
| 0.00 | 1.96 | 0.00 | 1.41 | -9.37 | 184.91 | 46.81 | 261.69 | 0.7294 | -647.0 | -495.1 | |
| 0.00 | 0.89 | 0.00 | 0.64 | -9.90 | 184.65 | 46.55 | 260.94 | 0.7265 | -460.0 | -427.5 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -9.57 | 184.59 | 46.49 | 261.39 | 0.7256 | -261.0 | -331.0 | |
| 1.42 | 2.93 | 1.02 | 2.11 | -10.69 | 184.71 | 46.61 | 259.86 | 0.7278 | -443.2 | -346.6 | |
| 11.38 | 14.85 | 8.13 | 10.61 | -10.84 | 184.29 | 46.19 | 259.62 | 0.7229 | -795.7 | -500.3 | |
| 0.00 | 1.07 | 0.00 | 0.76 | -10.12 | 184.02 | 45.92 | 260.59 | 0.7192 | -352.0 | -322.4 | |
| 0.00 | 0.80 | 0.00 | 0.57 | -10.19 | 183.86 | 45.76 | 260.48 | 0.7173 | -483.0 | -408.6 | |
| 0.00 | 0.80 | 0.00 | 0.56 | -10.82 | 182.97 | 44.87 | 259.51 | 0.7070 | -568.0 | -576.8 | |
| 1.69 | 3.65 | 1.18 | 2.55 | -12.32 | 183.01 | 44.91 | 257.41 | 0.7091 | 646.3 | 627.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
