SDO HMI 2014-04-24 04:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.24 | 0.00 | 6.71 | -13.62 | 142.71 | 4.61 | 199.22 | 0.1982 | 637.3 | 503.8 | |
|
previous
or next observation for the same group /

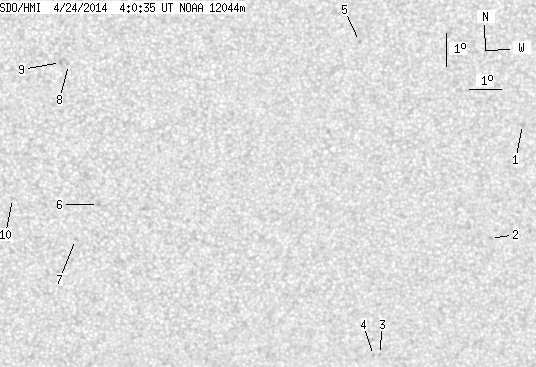

back to the solar disc SDO HMI 2014-04-24 04:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.22 | 0.00 | 1.14 | -11.90 | 150.88 | 12.78 | 240.02 | 0.2511 | 806.0 | 518.3 | |
| 0.00 | 1.33 | 0.00 | 0.69 | -15.40 | 150.05 | 11.95 | 227.20 | 0.2733 | 678.0 | 597.7 | |
| 0.00 | 0.98 | 0.00 | 0.51 | -19.03 | 146.68 | 8.59 | 209.86 | 0.2847 | 691.0 | 534.0 | |
| 0.00 | 0.98 | 0.00 | 0.50 | -19.06 | 146.49 | 8.39 | 209.25 | 0.2836 | 862.0 | 710.2 | |
| 0.00 | 1.24 | 0.00 | 0.62 | -9.46 | 145.72 | 7.62 | 238.20 | 0.1546 | 857.0 | 704.5 | |
| 0.00 | 1.16 | 0.00 | 0.58 | -14.44 | 137.71 | -0.39 | 177.73 | 0.1676 | -889.0 | -653.5 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -15.51 | 136.98 | -1.11 | 174.22 | 0.1869 | 934.0 | 612.6 | |
| 0.00 | 0.80 | 0.00 | 0.40 | -10.18 | 136.80 | -1.30 | 166.52 | 0.0961 | 644.0 | 560.2 | |
| 0.00 | 1.69 | 0.00 | 0.84 | -10.12 | 136.55 | -1.54 | 163.92 | 0.0961 | 958.0 | 774.1 | |
| 0.00 | 1.60 | 0.00 | 0.80 | -14.25 | 135.03 | -3.07 | 162.40 | 0.1723 | 832.0 | 538.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
