SDO HMI 2014-04-24 04:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.21 | 296.74 | 24.18 | 167.30 | -23.87 | 116.37 | -21.72 | 134.50 | 0.4757 | 505.9 | 279.5 | |
|
previous
or next observation for the same group /

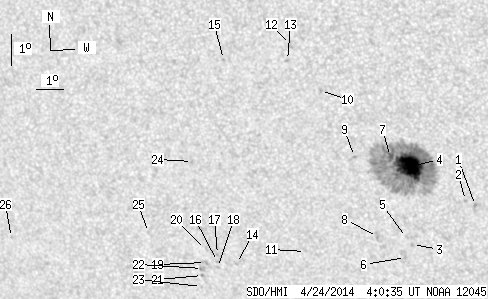

back to the solar disc SDO HMI 2014-04-24 04:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.51 | 0.00 | 0.84 | -25.06 | 119.18 | -18.92 | 139.97 | 0.4584 | 878.0 | 698.7 | |
| 0.00 | 1.24 | 0.00 | 0.69 | -24.89 | 118.86 | -19.24 | 139.25 | 0.4598 | 634.0 | 562.3 | |
| 0.00 | 1.33 | 0.00 | 0.76 | -26.25 | 116.72 | -21.38 | 138.55 | 0.4958 | 857.0 | 784.7 | |
| 40.63 | 259.33 | 22.73 | 145.35 | -23.75 | 117.07 | -21.02 | 135.05 | 0.4668 | 1271.2 | 368.5 | |
| 0.00 | 1.24 | 0.00 | 0.71 | -26.02 | 116.55 | -21.55 | 137.99 | 0.4951 | 767.0 | 529.9 | |
| 0.00 | 1.60 | 0.00 | 0.92 | -26.66 | 116.39 | -21.71 | 138.75 | 0.5034 | 791.0 | 642.4 | |
| 2.58 | -4.00 | 1.45 | -4.00 | -23.41 | 116.46 | -21.64 | 133.73 | 0.4702 | 762.9 | 999999 | |
| 0.00 | 3.47 | 0.00 | 1.99 | -25.95 | 115.51 | -22.58 | 136.65 | 0.5051 | 756.0 | 654.4 | |
| 0.00 | 1.33 | 0.00 | 0.75 | -23.37 | 115.19 | -22.91 | 132.17 | 0.4841 | -774.0 | -661.1 | |
| 0.00 | 1.87 | 0.00 | 1.05 | -21.25 | 114.36 | -23.74 | 127.60 | 0.4755 | -772.0 | -569.3 | |
| 0.00 | 0.36 | 0.00 | 0.21 | -26.35 | 112.78 | -25.32 | 134.28 | 0.5374 | 589.0 | 514.8 | |
| 0.00 | 3.11 | 0.00 | 1.75 | -19.77 | 113.55 | -24.55 | 124.10 | 0.4741 | -445.0 | -569.0 | |
| 0.00 | 1.96 | 0.00 | 1.10 | -20.27 | 113.36 | -24.74 | 124.83 | 0.4802 | -753.0 | -577.0 | |
| 0.00 | 1.51 | 0.00 | 0.91 | -26.64 | 110.10 | -28.00 | 132.17 | 0.5683 | -689.0 | -594.7 | |
| 0.00 | 1.16 | 0.00 | 0.66 | -20.15 | 111.09 | -27.01 | 122.60 | 0.5080 | -675.0 | -536.5 | |
| 0.00 | 1.51 | 0.00 | 0.91 | -26.55 | 109.39 | -28.70 | 131.42 | 0.5751 | -768.0 | -650.5 | |
| 0.00 | 0.62 | 0.00 | 0.38 | -26.32 | 109.46 | -28.64 | 131.14 | 0.5726 | -818.0 | -824.3 | |
| 0.00 | 1.33 | 0.00 | 0.81 | -26.74 | 109.34 | -28.76 | 131.65 | 0.5772 | -615.0 | -504.5 | |
| 0.00 | 2.58 | 0.00 | 1.57 | -26.56 | 108.93 | -29.17 | 131.04 | 0.5802 | -797.0 | -560.8 | |
| 0.00 | 0.62 | 0.00 | 0.38 | -26.14 | 109.04 | -29.05 | 130.53 | 0.5757 | -531.0 | -521.4 | |
| 0.00 | 1.42 | 0.00 | 0.87 | -26.98 | 108.69 | -29.41 | 131.44 | 0.5859 | -598.0 | -471.8 | |
| 0.00 | 2.93 | 0.00 | 1.79 | -26.75 | 108.76 | -29.34 | 131.17 | 0.5835 | -587.0 | -498.6 | |
| 0.00 | 1.07 | 0.00 | 0.65 | -27.33 | 108.55 | -29.55 | 131.83 | 0.5902 | -385.0 | -369.3 | |
| 0.00 | 1.33 | 0.00 | 0.79 | -23.31 | 109.28 | -28.82 | 126.39 | 0.5521 | -697.0 | -580.2 | |
| 0.00 | 1.24 | 0.00 | 0.76 | -25.50 | 107.01 | -31.08 | 127.97 | 0.5933 | -489.0 | -401.1 | |
| 0.00 | 1.07 | 0.00 | 0.70 | -25.42 | 101.52 | -36.58 | 124.24 | 0.6534 | -505.0 | -405.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
