SDO HMI 2014-04-24 06:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.77 | 0.00 | 5.46 | -12.79 | 141.64 | 4.63 | 197.69 | 0.2178 | 810.8 | 627.3 | |
|
previous
or next observation for the same group /

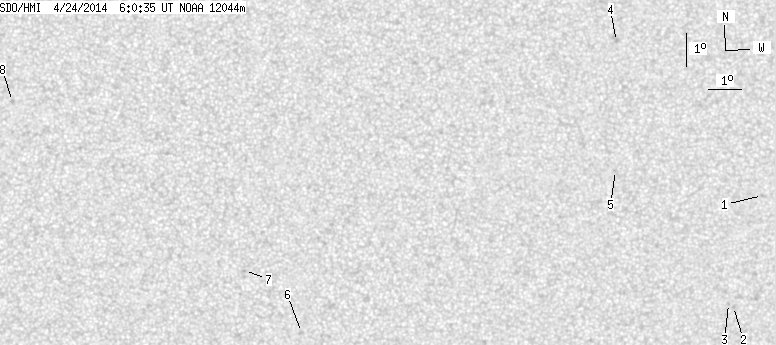

back to the solar disc SDO HMI 2014-04-24 06:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.59 | -11.84 | 151.17 | 14.17 | 242.56 | 0.2712 | 860.0 | 657.5 | |
| 0.00 | 1.42 | 0.00 | 0.74 | -15.24 | 150.44 | 13.44 | 230.82 | 0.2906 | 637.0 | 559.8 | |
| 0.00 | 1.07 | 0.00 | 0.55 | -15.15 | 150.28 | 13.28 | 230.73 | 0.2876 | 764.0 | 632.3 | |
| 0.00 | 0.71 | 0.00 | 0.36 | -7.25 | 146.45 | 9.45 | 255.12 | 0.1693 | 1006.0 | 759.4 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -11.15 | 146.52 | 9.52 | 235.59 | 0.1976 | 676.0 | 498.5 | |
| 0.00 | 2.05 | 0.00 | 1.03 | -16.15 | 136.82 | -0.18 | 179.11 | 0.1971 | 856.0 | 609.0 | |
| 0.00 | 1.07 | 0.00 | 0.54 | -14.24 | 135.05 | -1.95 | 168.59 | 0.1676 | 888.0 | 752.7 | |
| 0.00 | 1.96 | 0.00 | 0.98 | -9.04 | 127.98 | -9.03 | 115.66 | 0.1727 | 799.0 | 647.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
