SDO HMI 2014-04-24 07:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.30 | 95.13 | 9.44 | 49.06 | -20.51 | 140.01 | 3.56 | 192.01 | 0.2796 | 95.3 | 181.9 | |
|
previous
or next observation for the same group /

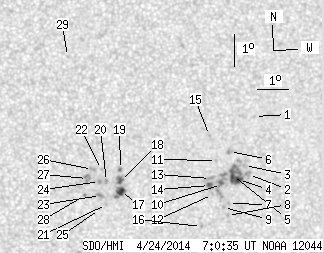

back to the solar disc SDO HMI 2014-04-24 07:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.41 | -18.50 | 142.25 | 5.80 | 202.02 | 0.2566 | 779.0 | 618.2 | |
| 0.00 | 3.47 | 0.00 | 1.79 | -20.31 | 142.12 | 5.67 | 199.10 | 0.2842 | 710.0 | 666.8 | |
| 0.00 | 1.33 | 0.00 | 0.69 | -20.03 | 141.98 | 5.53 | 199.02 | 0.2790 | 735.0 | 580.9 | |
| 4.53 | 22.05 | 2.34 | 11.38 | -20.47 | 141.80 | 5.35 | 197.93 | 0.2850 | 1035.9 | 972.1 | |
| 4.80 | -4.00 | 2.48 | -4.00 | -20.35 | 141.61 | 5.15 | 197.45 | 0.2820 | 1146.6 | 999999 | |
| 0.00 | 3.02 | 0.00 | 1.55 | -19.60 | 141.49 | 5.03 | 197.94 | 0.2695 | 1031.0 | 865.9 | |
| 0.00 | 1.16 | 0.00 | 0.60 | -21.23 | 141.50 | 5.05 | 196.19 | 0.2956 | 756.0 | 540.4 | |
| 0.00 | 1.33 | 0.00 | 0.69 | -21.60 | 141.48 | 5.03 | 195.76 | 0.3015 | 737.0 | 604.5 | |
| 0.00 | 0.80 | 0.00 | 0.41 | -21.35 | 141.35 | 4.89 | 195.59 | 0.2969 | 783.0 | 690.6 | |
| 0.00 | 14.58 | 0.00 | 7.53 | -20.63 | 141.26 | 4.80 | 196.04 | 0.2849 | 970.0 | 787.3 | |
| 0.00 | 1.16 | 0.00 | 0.59 | -19.88 | 141.08 | 4.62 | 196.25 | 0.2720 | 865.0 | 636.8 | |
| 0.00 | 0.98 | 0.00 | 0.51 | -20.95 | 140.98 | 4.52 | 194.85 | 0.2887 | 517.0 | 453.4 | |
| 0.00 | 3.73 | 0.00 | 1.93 | -20.44 | 140.90 | 4.44 | 195.08 | 0.2803 | 130.0 | 166.2 | |
| 1.69 | 3.56 | 0.87 | 1.84 | -20.66 | 140.87 | 4.42 | 194.78 | 0.2837 | 867.9 | 682.2 | |
| 0.00 | 0.89 | 0.00 | 0.46 | -19.10 | 140.83 | 4.38 | 196.29 | 0.2583 | 919.0 | 732.3 | |
| 0.00 | 0.98 | 0.00 | 0.51 | -21.95 | 140.65 | 4.19 | 192.96 | 0.3037 | 875.0 | 725.5 | |
| 4.62 | 9.69 | 2.38 | 5.00 | -20.86 | 138.00 | 1.55 | 185.22 | 0.2786 | -1093.5 | -802.6 | |
| 2.22 | 5.07 | 1.14 | 2.61 | -20.52 | 138.00 | 1.54 | 185.33 | 0.2728 | -1191.8 | -883.2 | |
| 0.44 | 1.51 | 0.23 | 0.78 | -20.17 | 138.00 | 1.54 | 185.45 | 0.2670 | -1067.0 | -928.6 | |
| 0.00 | 1.87 | 0.00 | 0.96 | -20.55 | 137.55 | 1.09 | 183.78 | 0.2727 | -1092.0 | -861.9 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -21.27 | 137.55 | 1.10 | 183.61 | 0.2849 | -751.0 | -596.2 | |
| 0.00 | 1.16 | 0.00 | 0.59 | -20.17 | 137.39 | 0.93 | 183.30 | 0.2662 | -1026.0 | -759.6 | |
| 0.00 | 2.93 | 0.00 | 1.51 | -20.99 | 137.36 | 0.90 | 183.03 | 0.2799 | -1002.0 | -864.0 | |
| 0.00 | 2.13 | 0.00 | 1.10 | -20.55 | 137.32 | 0.87 | 183.00 | 0.2725 | -1051.0 | -901.9 | |
| 0.00 | 0.62 | 0.00 | 0.32 | -21.43 | 137.33 | 0.87 | 182.84 | 0.2873 | -644.0 | -532.6 | |
| 0.00 | 2.67 | 0.00 | 1.37 | -20.17 | 137.10 | 0.64 | 182.28 | 0.2660 | -875.0 | -766.0 | |
| 0.00 | 4.89 | 0.00 | 2.52 | -20.45 | 136.94 | 0.48 | 181.68 | 0.2707 | -891.0 | -927.2 | |
| 0.00 | 0.98 | 0.00 | 0.50 | -20.99 | 136.84 | 0.39 | 181.30 | 0.2796 | -813.0 | -692.5 | |
| 0.00 | 0.53 | 0.00 | 0.27 | -16.66 | 136.30 | -0.15 | 179.28 | 0.2061 | 776.0 | 560.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
