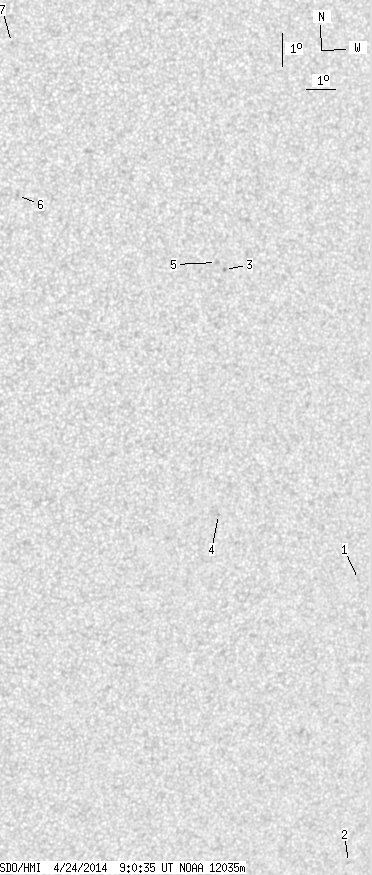

SDO HMI 2014-04-24 09:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.26 | 0.00 | 4.65 | -12.51 | 161.49 | 26.13 | 254.30 | 0.4590 | -344.7 | -327.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-24 09:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.54 | -19.13 | 167.71 | 32.35 | 242.82 | 0.5704 | -541.0 | -435.9 | |
| 0.00 | 0.89 | 0.00 | 0.58 | -28.12 | 169.91 | 34.55 | 230.75 | 0.6482 | -597.0 | -544.1 | |
| 0.00 | 1.24 | 0.00 | 0.69 | -9.85 | 161.56 | 26.20 | 257.53 | 0.4474 | -926.0 | -775.7 | |
| 0.00 | 0.71 | 0.00 | 0.40 | -17.32 | 162.25 | 26.89 | 242.45 | 0.4889 | -817.0 | -729.4 | |
| 0.00 | 2.31 | 0.00 | 1.28 | -9.65 | 161.27 | 25.91 | 257.88 | 0.4424 | -846.0 | -601.2 | |
| 0.00 | 0.71 | 0.00 | 0.37 | -7.83 | 154.57 | 19.21 | 260.06 | 0.3324 | 749.0 | 670.4 | |
| 0.00 | 1.51 | 0.00 | 0.79 | -3.22 | 154.23 | 18.87 | 274.14 | 0.3252 | 565.0 | 467.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
