SDO HMI 2014-04-24 09:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.66 | 358.39 | 37.60 | 225.48 | 17.91 | 166.28 | 30.92 | 307.49 | 0.6185 | -809.9 | -296.9 | |
|
previous
or next observation for the same group /

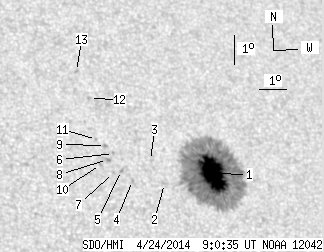

back to the solar disc SDO HMI 2014-04-24 09:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.66 | 339.46 | 37.60 | 213.89 | 17.88 | 166.46 | 31.10 | 307.29 | 0.6202 | -1253.3 | -346.4 | |
| 0.00 | 2.40 | 0.00 | 1.48 | 17.48 | 164.63 | 29.27 | 308.37 | 0.5969 | -255.0 | -273.5 | |
| 0.00 | 0.62 | 0.00 | 0.38 | 18.21 | 164.25 | 28.89 | 309.72 | 0.5989 | 212.0 | 145.9 | |
| 0.00 | 1.51 | 0.00 | 0.92 | 17.53 | 163.48 | 28.12 | 309.52 | 0.5848 | 598.0 | 492.5 | |
| 0.00 | 1.78 | 0.00 | 1.08 | 17.84 | 163.14 | 27.78 | 310.28 | 0.5837 | 886.0 | 751.7 | |
| 0.00 | 1.16 | 0.00 | 0.71 | 18.39 | 162.95 | 27.59 | 311.22 | 0.5864 | 609.0 | 460.0 | |
| 0.00 | 1.24 | 0.00 | 0.76 | 17.76 | 162.84 | 27.48 | 310.47 | 0.5798 | 629.0 | 436.1 | |
| 0.00 | 2.40 | 0.00 | 1.46 | 18.18 | 162.69 | 27.34 | 311.19 | 0.5819 | 869.0 | 709.0 | |
| 0.00 | 1.87 | 0.00 | 1.14 | 18.64 | 162.70 | 27.34 | 311.80 | 0.5861 | 668.0 | 565.0 | |
| 0.00 | 2.22 | 0.00 | 1.35 | 18.01 | 162.42 | 27.06 | 311.24 | 0.5774 | 727.0 | 620.4 | |
| 0.00 | 0.62 | 0.00 | 0.38 | 18.83 | 162.41 | 27.05 | 312.35 | 0.5847 | 665.0 | 534.7 | |
| 0.00 | 1.42 | 0.00 | 0.88 | 20.18 | 162.41 | 27.05 | 314.12 | 0.5968 | 688.0 | 518.4 | |
| 0.00 | 1.69 | 0.00 | 1.05 | 21.07 | 162.11 | 26.75 | 315.55 | 0.6020 | 660.0 | 517.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
