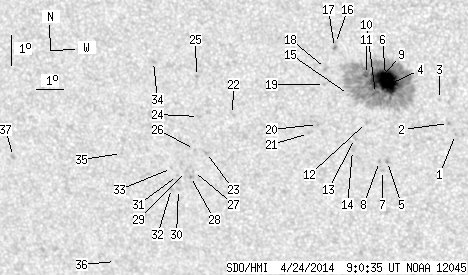

SDO HMI 2014-04-24 09:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.94 | 307.96 | 23.67 | 170.95 | -23.99 | 116.24 | -19.12 | 138.19 | 0.4494 | 395.8 | 273.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-24 09:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.44 | -25.51 | 119.17 | -16.19 | 144.78 | 0.4381 | 804.0 | 712.9 | |
| 0.00 | 1.42 | 0.00 | 0.78 | -25.15 | 118.98 | -16.38 | 143.94 | 0.4356 | 850.0 | 739.2 | |
| 0.00 | 1.42 | 0.00 | 0.78 | -24.38 | 118.77 | -16.59 | 142.43 | 0.4282 | 681.0 | 444.9 | |
| 22.05 | 264.42 | 12.15 | 145.90 | -23.85 | 117.08 | -18.28 | 139.01 | 0.4392 | 1296.4 | 379.5 | |
| 0.00 | 2.04 | 0.00 | 1.15 | -26.33 | 116.65 | -18.71 | 142.20 | 0.4710 | 886.0 | 633.9 | |
| 12.09 | -4.00 | 6.65 | -4.00 | -23.57 | 117.02 | -18.34 | 138.44 | 0.4366 | 1497.3 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.75 | -26.61 | 116.42 | -18.94 | 142.30 | 0.4764 | 786.0 | 677.0 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -26.32 | 116.37 | -18.99 | 141.80 | 0.4736 | 801.0 | 697.3 | |
| 4.09 | -4.00 | 2.26 | -4.00 | -23.81 | 116.63 | -18.73 | 138.29 | 0.4433 | 863.2 | 999999 | |
| 2.31 | -4.00 | 1.28 | -4.00 | -24.13 | 116.58 | -18.78 | 138.74 | 0.4473 | 474.3 | 999999 | |
| 2.40 | -4.00 | 1.33 | -4.00 | -23.52 | 116.36 | -19.00 | 137.42 | 0.4429 | 795.1 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.69 | -25.05 | 116.12 | -19.24 | 139.55 | 0.4620 | 656.0 | 406.3 | |
| 0.00 | 1.60 | 0.00 | 0.90 | -25.55 | 115.61 | -19.75 | 139.63 | 0.4725 | -655.0 | -484.7 | |
| 0.00 | 0.62 | 0.00 | 0.35 | -25.94 | 115.47 | -19.89 | 140.02 | 0.4780 | 824.0 | 664.3 | |
| 0.00 | 0.62 | 0.00 | 0.35 | -24.14 | 115.64 | -19.72 | 137.44 | 0.4572 | -183.0 | -159.3 | |
| 0.00 | 1.42 | 0.00 | 0.79 | -22.50 | 115.44 | -19.92 | 134.42 | 0.4425 | -847.0 | -503.7 | |
| 0.00 | 1.78 | 0.00 | 0.98 | -22.63 | 115.39 | -19.97 | 134.57 | 0.4444 | -704.0 | -541.3 | |
| 0.00 | 2.22 | 0.00 | 1.24 | -23.29 | 114.97 | -20.39 | 135.14 | 0.4556 | -802.0 | -538.1 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -23.79 | 114.85 | -20.51 | 135.83 | 0.4620 | -777.0 | -615.5 | |
| 0.00 | 1.24 | 0.00 | 0.70 | -25.06 | 114.38 | -20.98 | 137.27 | 0.4799 | 778.0 | 655.6 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -25.34 | 114.01 | -21.35 | 137.24 | 0.4866 | 631.0 | 544.1 | |
| 0.00 | 2.04 | 0.00 | 1.17 | -24.65 | 111.40 | -23.96 | 133.14 | 0.5078 | -500.0 | -505.7 | |
| 0.00 | 2.13 | 0.00 | 1.25 | -25.83 | 110.19 | -25.17 | 133.70 | 0.5316 | -662.0 | -592.5 | |
| 0.00 | 1.69 | 0.00 | 0.98 | -24.67 | 110.16 | -25.20 | 131.87 | 0.5217 | -703.0 | -641.7 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -23.39 | 110.35 | -25.01 | 130.02 | 0.5087 | -752.0 | -554.6 | |
| 0.00 | 0.80 | 0.00 | 0.47 | -25.72 | 109.77 | -25.59 | 133.11 | 0.5351 | -675.0 | -529.9 | |
| 0.00 | 0.80 | 0.00 | 0.47 | -26.43 | 109.56 | -25.80 | 133.97 | 0.5435 | -818.0 | -736.7 | |
| 0.00 | 1.33 | 0.00 | 0.79 | -26.59 | 109.41 | -25.95 | 134.05 | 0.5465 | -898.0 | -741.8 | |
| 0.00 | 1.87 | 0.00 | 1.10 | -26.42 | 109.30 | -26.06 | 133.70 | 0.5462 | -803.0 | -631.1 | |
| 0.00 | 1.69 | 0.00 | 1.00 | -26.99 | 108.86 | -26.50 | 134.10 | 0.5558 | -602.0 | -524.5 | |
| 0.00 | 0.80 | 0.00 | 0.47 | -26.54 | 108.94 | -26.42 | 133.51 | 0.5511 | -789.0 | -661.2 | |
| 0.00 | 1.96 | 0.00 | 1.17 | -26.95 | 108.60 | -26.75 | 133.80 | 0.5581 | -618.0 | -465.8 | |
| 0.00 | 0.71 | 0.00 | 0.42 | -26.30 | 108.77 | -26.59 | 133.01 | 0.5508 | -537.0 | -447.1 | |
| 0.00 | 1.96 | 0.00 | 1.13 | -22.86 | 108.90 | -26.46 | 127.75 | 0.5214 | -708.0 | -601.7 | |
| 0.00 | 0.62 | 0.00 | 0.37 | -25.75 | 107.02 | -28.34 | 130.59 | 0.5652 | -669.0 | -545.7 | |
| 0.00 | 1.16 | 0.00 | 0.72 | -29.25 | 105.76 | -29.60 | 134.49 | 0.6062 | -556.0 | -330.1 | |
| 0.00 | 2.22 | 0.00 | 1.39 | -25.67 | 102.84 | -32.52 | 127.21 | 0.6106 | -726.0 | -556.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
