SDO HMI 2014-04-24 12:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.85 | 0.00 | 3.85 | -14.33 | 160.33 | 26.62 | 248.27 | 0.4790 | -579.8 | -532.7 | |
|
previous
or next observation for the same group /

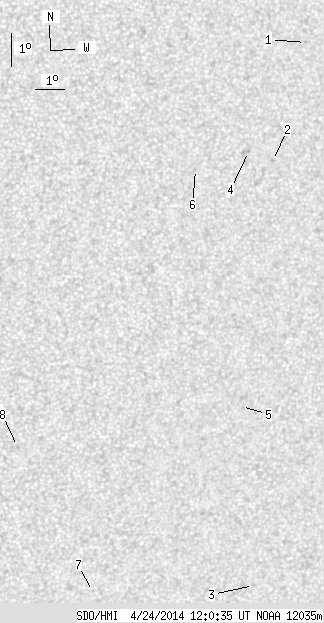

back to the solar disc SDO HMI 2014-04-24 12:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.45 | -6.43 | 162.97 | 29.25 | 265.42 | 0.4891 | -601.0 | -502.4 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -10.03 | 162.10 | 28.39 | 257.82 | 0.4809 | -829.0 | -686.8 | |
| 0.00 | 0.89 | 0.00 | 0.53 | -23.14 | 163.59 | 29.87 | 234.66 | 0.5636 | -444.0 | -398.1 | |
| 0.00 | 1.33 | 0.00 | 0.75 | -9.79 | 161.25 | 27.53 | 258.07 | 0.4675 | -715.0 | -608.4 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -17.57 | 162.00 | 28.28 | 242.97 | 0.5091 | -93.0 | -250.8 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -10.40 | 159.48 | 25.77 | 256.11 | 0.4423 | -780.0 | -579.1 | |
| 0.00 | 0.53 | 0.00 | 0.30 | -23.54 | 157.73 | 24.02 | 228.71 | 0.4987 | -577.0 | -504.0 | |
| 0.00 | 1.16 | 0.00 | 0.63 | -19.06 | 154.39 | 20.67 | 233.01 | 0.4195 | -599.0 | -516.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
