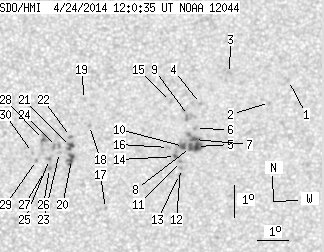

SDO HMI 2014-04-24 12:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.02 | 89.23 | 7.79 | 46.21 | -20.36 | 140.18 | 6.46 | 201.26 | 0.2921 | 106.5 | 189.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-24 12:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.65 | -18.39 | 144.81 | 11.10 | 217.70 | 0.3001 | 751.0 | 584.9 | |
| 0.00 | 0.71 | 0.00 | 0.37 | -19.08 | 144.24 | 10.53 | 214.85 | 0.3035 | 847.0 | 636.5 | |
| 0.00 | 1.96 | 0.00 | 1.01 | -18.20 | 142.90 | 9.18 | 213.09 | 0.2789 | 706.0 | 670.7 | |
| 0.00 | 0.80 | 0.00 | 0.41 | -19.14 | 142.01 | 8.30 | 208.76 | 0.2846 | 845.0 | 580.2 | |
| 3.29 | 32.00 | 1.71 | 16.62 | -20.48 | 141.95 | 8.24 | 206.34 | 0.3038 | 1061.4 | 847.3 | |
| 0.00 | 1.78 | 0.00 | 0.92 | -19.92 | 141.89 | 8.18 | 207.07 | 0.2951 | 978.0 | 699.1 | |
| 1.78 | -5.00 | 0.92 | -5.00 | -20.26 | 141.88 | 8.16 | 206.48 | 0.3000 | 1196.0 | 999999 | |
| 1.87 | -5.00 | 0.97 | -5.00 | -20.52 | 141.76 | 8.04 | 205.76 | 0.3029 | 1084.0 | 999999 | |
| 0.00 | 8.09 | 0.00 | 4.18 | -19.52 | 141.65 | 7.93 | 207.04 | 0.2873 | 974.0 | 762.4 | |
| 1.69 | -5.00 | 0.88 | -5.00 | -20.49 | 141.53 | 7.82 | 205.17 | 0.3008 | 1069.9 | 999999 | |
| 0.00 | 1.51 | 0.00 | 0.79 | -20.96 | 141.46 | 7.74 | 204.27 | 0.3073 | 921.0 | 727.9 | |
| 0.00 | 1.51 | 0.00 | 0.79 | -21.18 | 141.47 | 7.75 | 203.99 | 0.3107 | 805.0 | 690.1 | |
| 0.00 | 1.42 | 0.00 | 0.74 | -21.37 | 141.45 | 7.73 | 203.67 | 0.3134 | 806.0 | 691.8 | |
| 0.53 | -5.00 | 0.28 | -5.00 | -20.80 | 141.29 | 7.57 | 204.03 | 0.3038 | 904.8 | 999999 | |
| 0.00 | 1.69 | 0.00 | 0.87 | -19.09 | 141.05 | 7.33 | 205.99 | 0.2764 | 812.0 | 744.6 | |
| 0.00 | 2.04 | 0.00 | 1.06 | -20.52 | 141.05 | 7.33 | 203.75 | 0.2980 | 809.0 | 624.6 | |
| 0.00 | 1.33 | 0.00 | 0.70 | -22.46 | 139.08 | 5.36 | 195.87 | 0.3170 | -769.0 | -596.3 | |
| 0.00 | 1.07 | 0.00 | 0.55 | -19.85 | 138.47 | 4.75 | 196.69 | 0.2726 | -784.0 | -609.4 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -19.04 | 138.29 | 4.57 | 197.01 | 0.2586 | 804.0 | 552.8 | |
| 3.11 | 7.11 | 1.61 | 3.68 | -20.92 | 137.92 | 4.20 | 193.84 | 0.2874 | -1009.8 | -841.2 | |
| 2.22 | 4.27 | 1.15 | 2.20 | -20.51 | 137.88 | 4.16 | 194.07 | 0.2806 | -1099.4 | -916.4 | |
| 0.00 | 1.69 | 0.00 | 0.87 | -20.20 | 137.87 | 4.15 | 194.34 | 0.2755 | -945.0 | -823.0 | |
| 0.00 | 1.42 | 0.00 | 0.73 | -20.70 | 137.53 | 3.81 | 192.77 | 0.2823 | -902.0 | -700.4 | |
| 0.00 | 4.53 | 0.00 | 2.34 | -20.52 | 137.42 | 3.71 | 192.60 | 0.2789 | -454.0 | -806.9 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -20.92 | 137.21 | 3.49 | 191.57 | 0.2848 | -1127.0 | -947.3 | |
| 0.00 | 1.42 | 0.00 | 0.74 | -21.21 | 137.21 | 3.50 | 191.38 | 0.2895 | -882.0 | -745.9 | |
| 0.00 | 1.07 | 0.00 | 0.55 | -21.30 | 137.05 | 3.34 | 190.81 | 0.2905 | -841.0 | -592.4 | |
| 0.53 | 6.22 | 0.27 | 3.20 | -20.30 | 137.00 | 3.28 | 191.37 | 0.2738 | -1139.0 | -906.6 | |
| 0.00 | 0.98 | 0.00 | 0.50 | -20.96 | 136.79 | 3.07 | 190.19 | 0.2840 | -838.0 | -739.8 | |
| 0.00 | 0.89 | 0.00 | 0.46 | -20.71 | 136.65 | 2.94 | 189.92 | 0.2795 | -859.0 | -746.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
