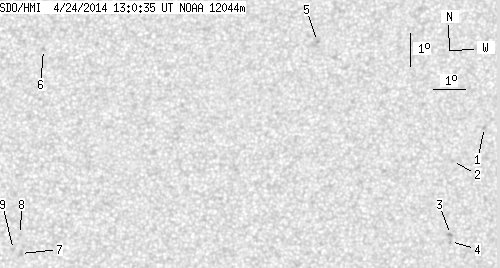

SDO HMI 2014-04-24 13:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.20 | 0.00 | 7.80 | -13.90 | 143.18 | 10.01 | 221.74 | 0.2481 | 806.2 | 654.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-24 13:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.56 | -11.96 | 151.29 | 18.12 | 247.08 | 0.3318 | 818.0 | 661.2 | |
| 0.00 | 1.33 | 0.00 | 0.70 | -13.02 | 150.33 | 17.16 | 242.99 | 0.3241 | 683.0 | 552.1 | |
| 0.00 | 1.87 | 0.00 | 0.98 | -15.25 | 150.43 | 17.27 | 237.15 | 0.3424 | 957.0 | 781.3 | |
| 0.00 | 1.78 | 0.00 | 0.94 | -15.46 | 150.45 | 17.28 | 236.63 | 0.3444 | 694.0 | 612.8 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -9.46 | 145.85 | 12.68 | 248.96 | 0.2330 | 872.0 | 739.6 | |
| 0.00 | 2.04 | 0.00 | 1.02 | -9.80 | 137.38 | 4.21 | 219.64 | 0.1139 | 810.0 | 574.1 | |
| 0.00 | 3.20 | 0.00 | 1.62 | -16.02 | 136.75 | 3.59 | 197.17 | 0.2046 | 867.0 | 692.1 | |
| 0.00 | 1.07 | 0.00 | 0.54 | -15.43 | 136.74 | 3.58 | 198.04 | 0.1950 | 724.0 | 536.7 | |
| 0.00 | 1.60 | 0.00 | 0.81 | -15.89 | 136.53 | 3.36 | 196.34 | 0.2015 | 831.0 | 667.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
