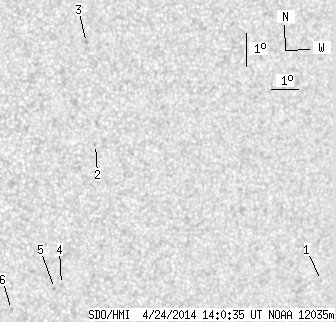

SDO HMI 2014-04-24 14:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.50 | 0.00 | 3.80 | -15.56 | 163.12 | 30.51 | 247.96 | 0.5308 | -681.0 | -561.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-24 14:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.62 | 0.00 | 0.41 | -16.88 | 172.20 | 39.59 | 249.53 | 0.6532 | -611.0 | -465.7 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -13.12 | 162.87 | 30.25 | 252.39 | 0.5168 | -685.0 | -538.8 | |
| 0.00 | 1.16 | 0.00 | 0.66 | -10.04 | 162.19 | 29.57 | 258.14 | 0.4986 | -810.0 | -692.8 | |
| 0.00 | 1.33 | 0.00 | 0.78 | -17.45 | 162.32 | 29.70 | 244.11 | 0.5275 | -513.0 | -431.3 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -17.58 | 162.09 | 29.47 | 243.72 | 0.5251 | -749.0 | -614.3 | |
| 0.00 | 1.16 | 0.00 | 0.66 | -18.29 | 160.66 | 28.04 | 241.48 | 0.5100 | -718.0 | -610.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
