SDO HMI 2014-04-24 15:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.14 | 0.00 | 5.22 | -13.67 | 143.65 | 11.58 | 227.83 | 0.2681 | 572.4 | 464.5 | |
|
previous
or next observation for the same group /

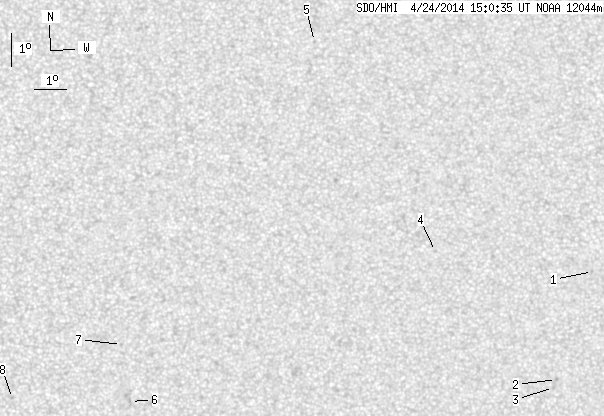

back to the solar disc SDO HMI 2014-04-24 15:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.61 | -11.96 | 151.36 | 19.29 | 248.21 | 0.3496 | 821.0 | 623.2 | |
| 0.00 | 1.16 | 0.00 | 0.61 | -15.28 | 150.45 | 18.38 | 238.56 | 0.3581 | 869.0 | 681.1 | |
| 0.00 | 1.51 | 0.00 | 0.80 | -15.53 | 150.37 | 18.31 | 237.85 | 0.3590 | 643.0 | 490.9 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -11.47 | 146.28 | 14.21 | 243.76 | 0.2694 | 701.0 | 394.2 | |
| 0.00 | 0.98 | 0.00 | 0.49 | -5.19 | 142.31 | 10.24 | 267.40 | 0.1781 | -729.0 | -468.5 | |
| 0.00 | 2.40 | 0.00 | 1.22 | -16.16 | 136.85 | 4.78 | 202.09 | 0.2139 | 762.0 | 679.9 | |
| 0.00 | 1.16 | 0.00 | 0.58 | -14.42 | 136.53 | 4.46 | 204.25 | 0.1843 | 666.0 | 405.0 | |
| 0.00 | 0.53 | 0.00 | 0.27 | -16.08 | 133.14 | 1.07 | 185.26 | 0.1973 | 846.0 | 561.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
