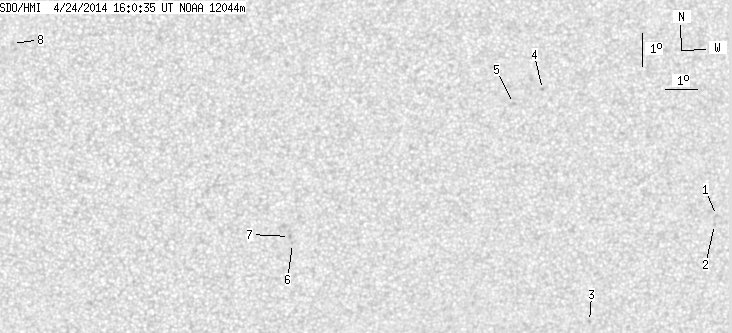

SDO HMI 2014-04-24 16:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.07 | 0.00 | 4.67 | -14.19 | 141.68 | 10.16 | 215.33 | 0.2586 | 793.8 | 628.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-24 16:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.52 | -15.27 | 150.43 | 18.91 | 239.25 | 0.3654 | 741.0 | 567.0 | |
| 0.00 | 1.07 | 0.00 | 0.57 | -15.54 | 150.39 | 18.87 | 238.53 | 0.3669 | 704.0 | 511.8 | |
| 0.00 | 1.07 | 0.00 | 0.56 | -18.63 | 146.55 | 15.03 | 225.48 | 0.3462 | 881.0 | 695.9 | |
| 0.00 | 1.16 | 0.00 | 0.59 | -11.55 | 144.56 | 13.05 | 241.60 | 0.2526 | 830.0 | 615.2 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -11.99 | 143.67 | 12.15 | 238.35 | 0.2430 | 805.0 | 608.6 | |
| 0.00 | 0.62 | 0.00 | 0.32 | -16.34 | 136.87 | 5.36 | 204.08 | 0.2205 | 642.0 | 559.7 | |
| 0.00 | 1.42 | 0.00 | 0.72 | -16.13 | 136.77 | 5.25 | 204.09 | 0.2165 | 907.0 | 776.6 | |
| 0.00 | 1.51 | 0.00 | 0.75 | -10.25 | 128.16 | -3.35 | 148.79 | 0.1116 | 840.0 | 620.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
