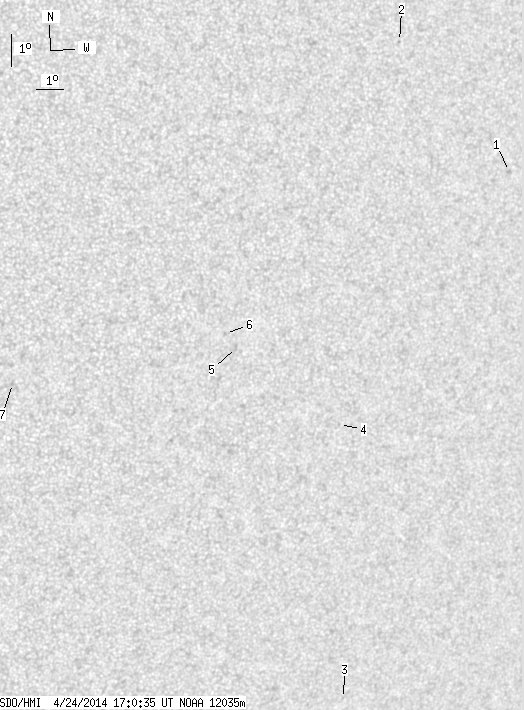

SDO HMI 2014-04-24 17:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.62 | 0.00 | 5.29 | -16.18 | 164.98 | 34.02 | 247.84 | 0.5838 | -697.0 | -537.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-24 17:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.22 | 0.00 | 1.45 | -11.78 | 171.62 | 40.66 | 257.51 | 0.6555 | -782.0 | -500.7 | |
| 0.00 | 1.07 | 0.00 | 0.65 | -8.07 | 166.81 | 35.85 | 262.85 | 0.5866 | -707.0 | -546.2 | |
| 0.00 | 0.62 | 0.00 | 0.43 | -28.53 | 169.73 | 38.77 | 232.73 | 0.6937 | -511.0 | -356.0 | |
| 0.00 | 0.89 | 0.00 | 0.56 | -19.84 | 166.60 | 35.64 | 243.41 | 0.6151 | -653.0 | -520.6 | |
| 0.00 | 1.24 | 0.00 | 0.74 | -17.63 | 162.17 | 31.21 | 244.68 | 0.5484 | -690.0 | -578.9 | |
| 0.00 | 0.89 | 0.00 | 0.52 | -17.22 | 161.68 | 30.72 | 245.12 | 0.5400 | -763.0 | -523.3 | |
| 0.00 | 1.69 | 0.00 | 0.94 | -19.03 | 154.38 | 23.42 | 236.11 | 0.4545 | -773.0 | -654.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
