SDO HMI 2014-04-24 21:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.62 | 0.00 | 5.48 | -16.86 | 165.66 | 36.91 | 248.94 | 0.6217 | -567.2 | -520.0 | |
|
previous
or next observation for the same group /

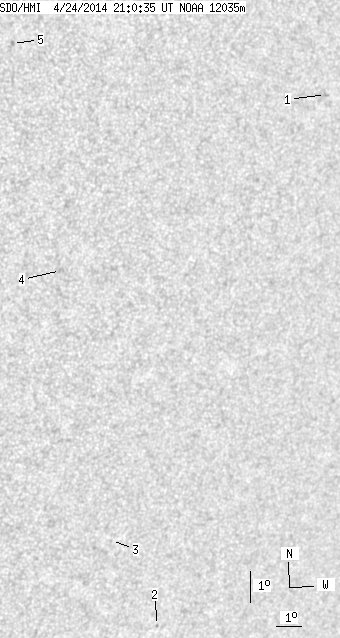

back to the solar disc SDO HMI 2014-04-24 21:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.31 | 0.00 | 1.56 | -11.76 | 171.43 | 42.68 | 257.85 | 0.6812 | -683.0 | -510.0 | |
| 0.00 | 1.16 | 0.00 | 0.82 | -28.66 | 169.69 | 40.94 | 233.69 | 0.7158 | -547.0 | -490.5 | |
| 0.00 | 0.71 | 0.00 | 0.47 | -26.01 | 166.54 | 37.79 | 235.56 | 0.6700 | -188.0 | -163.2 | |
| 0.00 | 2.40 | 0.00 | 1.45 | -17.63 | 162.09 | 33.34 | 245.81 | 0.5765 | -702.0 | -606.0 | |
| 0.00 | 2.04 | 0.00 | 1.18 | -10.79 | 159.25 | 30.50 | 256.93 | 0.5139 | -716.0 | -591.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
