SDO HMI 2014-04-24 21:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.11 | 0.00 | 3.66 | -12.16 | 140.34 | 11.59 | 225.03 | 0.2562 | 855.7 | 667.1 | |
|
previous
or next observation for the same group /

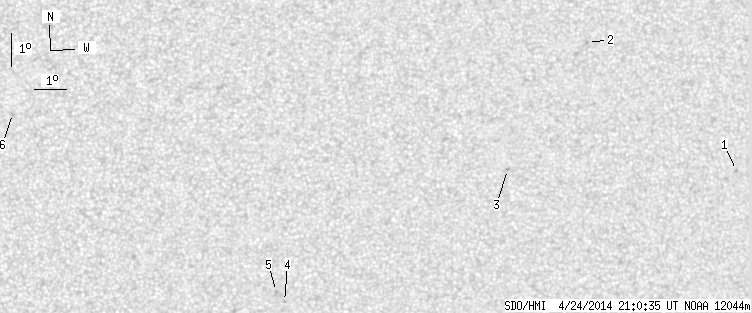

back to the solar disc SDO HMI 2014-04-24 21:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.67 | -11.81 | 151.16 | 22.42 | 251.04 | 0.3964 | 791.0 | 607.9 | |
| 0.00 | 0.98 | 0.00 | 0.51 | -8.06 | 146.08 | 17.33 | 258.35 | 0.3024 | 824.0 | 690.5 | |
| 0.00 | 1.42 | 0.00 | 0.73 | -11.96 | 143.72 | 14.97 | 243.22 | 0.2843 | 778.0 | 562.4 | |
| 0.00 | 0.98 | 0.00 | 0.50 | -16.10 | 136.85 | 8.10 | 214.51 | 0.2399 | 882.0 | 697.6 | |
| 0.00 | 0.98 | 0.00 | 0.50 | -15.79 | 136.58 | 7.83 | 214.39 | 0.2332 | 912.0 | 690.8 | |
| 0.00 | 1.51 | 0.00 | 0.75 | -10.40 | 128.30 | -0.44 | 175.53 | 0.0985 | 947.0 | 770.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
