SDO HMI 2014-04-24 23:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.36 | 0.00 | 4.33 | -12.86 | 139.85 | 12.20 | 225.78 | 0.2686 | 744.4 | 582.4 | |
|
previous
or next observation for the same group /

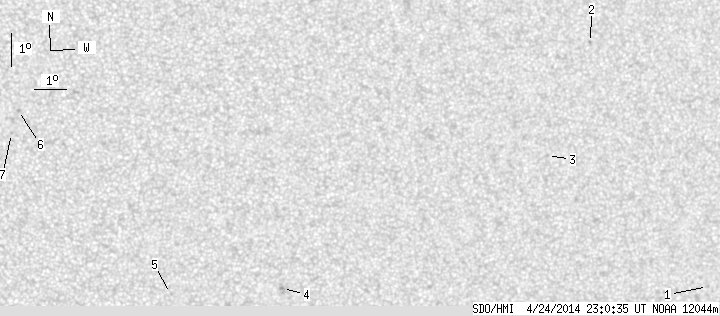

back to the solar disc SDO HMI 2014-04-24 23:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.42 | 0.00 | 0.78 | -15.46 | 150.46 | 22.82 | 242.88 | 0.4217 | 512.0 | 346.9 | |
| 0.00 | 1.42 | 0.00 | 0.74 | -8.15 | 146.03 | 18.39 | 258.61 | 0.3200 | 900.0 | 662.9 | |
| 0.00 | 1.16 | 0.00 | 0.60 | -11.61 | 144.84 | 17.20 | 247.09 | 0.3158 | 769.0 | 525.8 | |
| 0.00 | 1.78 | 0.00 | 0.91 | -15.81 | 136.62 | 8.97 | 217.99 | 0.2449 | 911.0 | 715.0 | |
| 0.00 | 0.89 | 0.00 | 0.45 | -15.99 | 133.08 | 5.44 | 205.09 | 0.2160 | 406.0 | 367.4 | |
| 0.00 | 1.16 | 0.00 | 0.58 | -10.43 | 128.30 | 0.66 | 186.57 | 0.0994 | 951.0 | 818.7 | |
| 0.00 | 0.53 | 0.00 | 0.27 | -11.13 | 128.09 | 0.45 | 183.95 | 0.1112 | 762.0 | 572.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
