SDO HMI 2014-04-25 05:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.77 | 50.01 | 20.89 | 54.37 | -10.39 | 187.48 | 63.14 | 260.72 | 0.8902 | 243.4 | -96.5 | |
|
previous
or next observation for the same group /

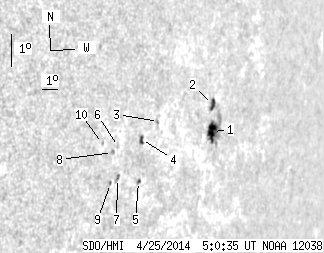

back to the solar disc SDO HMI 2014-04-25 05:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.90 | 29.62 | 14.64 | 33.83 | -10.19 | 188.88 | 64.54 | 260.96 | 0.9016 | 475.3 | -107.1 | |
| 3.38 | 5.69 | 3.80 | 6.42 | -9.39 | 188.59 | 64.25 | 261.86 | 0.8995 | 452.7 | 158.5 | |
| 0.00 | 0.80 | 0.00 | 0.81 | -10.15 | 185.22 | 60.88 | 261.01 | 0.8726 | -519.0 | -462.7 | |
| 1.96 | 3.83 | 1.92 | 3.76 | -10.76 | 184.36 | 60.02 | 260.30 | 0.8653 | -582.5 | -436.5 | |
| 0.53 | 1.42 | 0.53 | 1.41 | -12.03 | 184.61 | 60.28 | 258.83 | 0.8677 | -481.5 | -466.5 | |
| 0.00 | 1.25 | 0.00 | 1.18 | -11.07 | 183.06 | 58.72 | 259.92 | 0.8539 | -340.0 | -274.1 | |
| 0.00 | 2.85 | 0.00 | 2.71 | -12.03 | 183.32 | 58.98 | 258.80 | 0.8565 | 480.0 | 355.1 | |
| 0.00 | 2.05 | 0.00 | 1.92 | -11.27 | 182.77 | 58.43 | 259.67 | 0.8514 | -582.0 | -390.0 | |
| 0.00 | 1.25 | 0.00 | 1.18 | -12.21 | 182.96 | 58.63 | 258.57 | 0.8534 | 550.0 | 449.1 | |
| 0.00 | 1.25 | 0.00 | 1.15 | -11.04 | 182.11 | 57.77 | 259.92 | 0.8453 | -348.0 | -366.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
