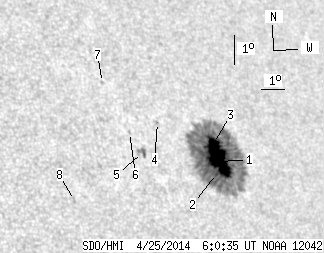

SDO HMI 2014-04-25 06:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.42 | 299.09 | 34.87 | 219.56 | 18.06 | 166.10 | 42.31 | 299.85 | 0.7401 | -880.1 | -285.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-25 06:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.96 | 288.86 | 25.70 | 212.40 | 17.94 | 166.24 | 42.45 | 299.62 | 0.7410 | -1128.8 | -317.0 | |
| 2.14 | -1.00 | 1.56 | -1.00 | 17.54 | 166.00 | 42.21 | 299.25 | 0.7365 | -1137.6 | 999999 | |
| 10.32 | -1.00 | 7.61 | -1.00 | 18.53 | 166.16 | 42.37 | 300.38 | 0.7430 | -924.5 | 999999 | |
| 0.00 | 1.42 | 0.00 | 1.02 | 19.09 | 163.95 | 40.16 | 302.32 | 0.7235 | 510.0 | 445.3 | |
| 0.00 | 5.78 | 0.00 | 4.05 | 18.06 | 163.04 | 39.25 | 301.58 | 0.7084 | 528.0 | 529.5 | |
| 0.00 | 1.07 | 0.00 | 0.75 | 18.69 | 162.68 | 38.89 | 302.60 | 0.7082 | 508.0 | 467.1 | |
| 0.00 | 1.16 | 0.00 | 0.81 | 20.30 | 162.03 | 38.24 | 305.02 | 0.7111 | 625.0 | 451.9 | |
| 0.00 | 0.80 | 0.00 | 0.53 | 16.34 | 159.90 | 36.11 | 301.35 | 0.6645 | 560.0 | 485.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
