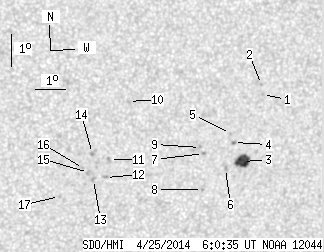

SDO HMI 2014-04-25 06:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.39 | 37.18 | 6.16 | 19.92 | -20.33 | 140.30 | 16.51 | 224.18 | 0.3835 | 386.5 | 70.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-25 06:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.48 | -18.31 | 142.62 | 18.83 | 232.08 | 0.3901 | 916.0 | 780.3 | |
| 0.00 | 0.89 | 0.00 | 0.48 | -18.00 | 142.55 | 18.76 | 232.65 | 0.3865 | 916.0 | 711.1 | |
| 11.39 | 13.79 | 6.16 | 7.46 | -20.41 | 142.19 | 18.40 | 227.19 | 0.4050 | 1051.3 | 746.0 | |
| 0.00 | 1.60 | 0.00 | 0.86 | -19.82 | 141.82 | 18.03 | 227.80 | 0.3947 | 1003.0 | 807.5 | |
| 0.00 | 0.98 | 0.00 | 0.53 | -19.54 | 141.68 | 17.89 | 228.16 | 0.3903 | 866.0 | 665.6 | |
| 0.00 | 2.14 | 0.00 | 1.15 | -20.64 | 141.64 | 17.85 | 225.93 | 0.4010 | 799.0 | 666.6 | |
| 0.00 | 1.42 | 0.00 | 0.76 | -20.19 | 140.85 | 17.06 | 225.58 | 0.3871 | 870.0 | 656.8 | |
| 0.00 | 0.80 | 0.00 | 0.43 | -21.32 | 140.95 | 17.15 | 223.58 | 0.4003 | 898.0 | 757.4 | |
| 0.00 | 1.42 | 0.00 | 0.76 | -20.00 | 140.73 | 16.94 | 225.76 | 0.3838 | 949.0 | 816.9 | |
| 0.00 | 1.42 | 0.00 | 0.75 | -18.62 | 138.20 | 14.41 | 224.22 | 0.3396 | 828.0 | 588.3 | |
| 0.00 | 1.87 | 0.00 | 0.99 | -20.44 | 137.74 | 13.94 | 219.61 | 0.3557 | -876.0 | -679.6 | |
| 0.00 | 2.22 | 0.00 | 1.18 | -21.01 | 137.65 | 13.86 | 218.39 | 0.3618 | -966.0 | -683.8 | |
| 0.00 | 1.78 | 0.00 | 0.94 | -21.08 | 137.26 | 13.47 | 217.49 | 0.3587 | -727.0 | -655.3 | |
| 0.00 | 1.69 | 0.00 | 0.89 | -20.26 | 137.16 | 13.37 | 218.81 | 0.3476 | -1016.0 | -834.7 | |
| 0.00 | 2.31 | 0.00 | 1.22 | -20.86 | 137.08 | 13.29 | 217.52 | 0.3541 | -850.0 | -747.2 | |
| 0.00 | 0.71 | 0.00 | 0.38 | -20.74 | 136.90 | 13.11 | 217.39 | 0.3509 | -829.0 | -636.0 | |
| 0.00 | 1.25 | 0.00 | 0.66 | -21.63 | 136.18 | 12.39 | 214.31 | 0.3554 | -692.0 | -640.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
