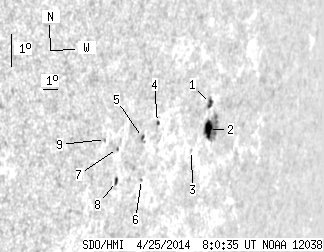

SDO HMI 2014-04-25 08:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.39 | 43.78 | 18.01 | 50.93 | -10.30 | 187.76 | 65.06 | 260.82 | 0.9050 | 304.3 | -105.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-25 08:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.49 | 4.80 | 2.98 | 5.74 | -9.38 | 188.63 | 65.94 | 261.84 | 0.9119 | 493.0 | 382.2 | |
| 10.32 | 27.67 | 12.40 | 33.51 | -10.16 | 188.79 | 66.09 | 260.98 | 0.9129 | 515.7 | -133.1 | |
| 0.00 | 1.16 | 0.00 | 1.34 | -10.88 | 187.80 | 65.11 | 260.19 | 0.9058 | 454.0 | 353.0 | |
| 0.71 | 1.78 | 0.75 | 1.89 | -10.21 | 185.16 | 62.47 | 260.94 | 0.8856 | -401.2 | -331.3 | |
| 0.62 | 2.94 | 0.64 | 3.04 | -10.73 | 184.35 | 61.66 | 260.35 | 0.8791 | -499.4 | -468.4 | |
| 0.00 | 0.89 | 0.00 | 0.93 | -11.99 | 184.76 | 62.06 | 258.92 | 0.8825 | -574.0 | -492.5 | |
| 0.00 | 1.07 | 0.00 | 1.05 | -11.17 | 182.91 | 60.21 | 259.83 | 0.8671 | -184.0 | -228.3 | |
| 1.25 | 2.67 | 1.24 | 2.66 | -12.16 | 183.21 | 60.51 | 258.69 | 0.8698 | 261.9 | 227.6 | |
| 0.00 | 0.80 | 0.00 | 0.77 | -10.95 | 182.10 | 59.40 | 260.06 | 0.8600 | -566.0 | -393.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
