SDO HMI 2014-04-25 10:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.34 | 316.15 | 29.09 | 166.63 | -23.67 | 115.87 | -5.73 | 164.45 | 0.3406 | 504.4 | 271.9 | |
|
previous
or next observation for the same group /

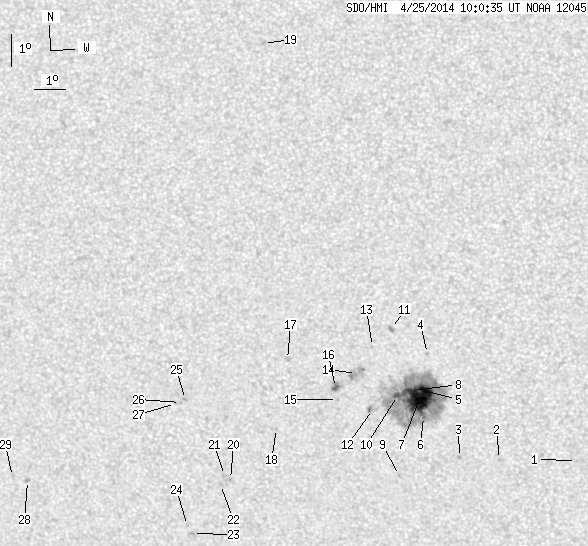

back to the solar disc SDO HMI 2014-04-25 10:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.52 | -25.68 | 121.77 | 0.16 | 180.42 | 0.3593 | 760.0 | 598.2 | |
| 0.00 | 1.07 | 0.00 | 0.57 | -25.64 | 119.19 | -2.41 | 173.94 | 0.3607 | 807.0 | 649.8 | |
| 0.00 | 1.07 | 0.00 | 0.57 | -25.57 | 117.85 | -3.75 | 170.59 | 0.3625 | 799.0 | 663.8 | |
| 0.00 | 1.25 | 0.00 | 0.65 | -22.24 | 116.91 | -4.69 | 165.89 | 0.3121 | 769.0 | 606.7 | |
| 10.67 | 261.88 | 5.60 | 137.74 | -23.45 | 116.83 | -4.77 | 166.64 | 0.3317 | 1545.6 | 404.3 | |
| 0.89 | -5.00 | 0.47 | -5.00 | -24.24 | 116.70 | -4.90 | 166.89 | 0.3449 | 736.2 | 999999 | |
| 32.56 | -5.00 | 17.13 | -5.00 | -23.76 | 116.55 | -5.05 | 166.15 | 0.3378 | 1235.6 | 999999 | |
| 6.32 | -5.00 | 3.32 | -5.00 | -23.41 | 116.37 | -5.23 | 165.38 | 0.3330 | 1143.7 | 999999 | |
| 0.00 | 1.51 | 0.00 | 0.81 | -26.14 | 115.81 | -5.79 | 166.08 | 0.3782 | 861.0 | 639.1 | |
| 2.94 | -5.00 | 1.54 | -5.00 | -23.57 | 115.87 | -5.73 | 164.19 | 0.3376 | 883.9 | 999999 | |
| 0.00 | 3.02 | 0.00 | 1.57 | -21.44 | 115.76 | -5.84 | 161.81 | 0.3046 | -1121.0 | -946.3 | |
| 0.00 | 4.09 | 0.00 | 2.16 | -24.00 | 115.02 | -6.58 | 162.43 | 0.3485 | -52.0 | 408.7 | |
| 0.00 | 0.98 | 0.00 | 0.51 | -22.00 | 115.12 | -6.48 | 160.62 | 0.3169 | -432.0 | -433.7 | |
| 0.00 | 13.43 | 0.00 | 7.05 | -22.85 | 114.55 | -7.05 | 160.06 | 0.3332 | 274.0 | 116.3 | |
| 0.00 | 0.98 | 0.00 | 0.52 | -23.67 | 113.87 | -7.73 | 159.27 | 0.3495 | -631.0 | -530.2 | |
| 1.96 | 5.43 | 1.03 | 2.86 | -23.29 | 113.83 | -7.77 | 158.74 | 0.3440 | -933.9 | -797.0 | |
| 0.00 | 2.67 | 0.00 | 1.41 | -22.38 | 112.30 | -9.30 | 153.85 | 0.3406 | -581.0 | -590.9 | |
| 0.00 | 0.89 | 0.00 | 0.48 | -24.57 | 111.77 | -9.83 | 155.50 | 0.3761 | -775.0 | -674.7 | |
| 0.00 | 1.87 | 0.00 | 0.95 | -12.59 | 112.06 | -9.55 | 130.46 | 0.2137 | -889.0 | -662.2 | |
| 0.00 | 0.98 | 0.00 | 0.53 | -26.19 | 110.06 | -11.54 | 153.97 | 0.4108 | -849.0 | -723.0 | |
| 0.00 | 1.69 | 0.00 | 0.92 | -26.06 | 109.87 | -11.74 | 153.44 | 0.4103 | -901.0 | -783.2 | |
| 0.00 | 1.51 | 0.00 | 0.82 | -26.35 | 109.70 | -11.90 | 153.47 | 0.4155 | -752.0 | -633.9 | |
| 0.00 | 2.05 | 0.00 | 1.13 | -27.93 | 108.54 | -13.06 | 153.25 | 0.4453 | -844.0 | -699.8 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -27.67 | 108.40 | -13.20 | 152.70 | 0.4427 | -751.0 | -621.6 | |
| 0.00 | 1.69 | 0.00 | 0.91 | -23.60 | 108.79 | -12.81 | 148.02 | 0.3853 | -959.0 | -743.5 | |
| 0.00 | 0.89 | 0.00 | 0.48 | -23.69 | 108.61 | -12.99 | 147.81 | 0.3880 | -769.0 | -618.9 | |
| 0.00 | 0.98 | 0.00 | 0.53 | -23.72 | 108.44 | -13.16 | 147.53 | 0.3899 | -737.0 | -579.5 | |
| 0.00 | 2.13 | 0.00 | 1.20 | -26.07 | 103.00 | -18.60 | 142.10 | 0.4683 | -868.0 | -664.1 | |
| 0.00 | 2.22 | 0.00 | 1.25 | -25.93 | 102.50 | -19.11 | 141.19 | 0.4715 | -682.0 | -493.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
