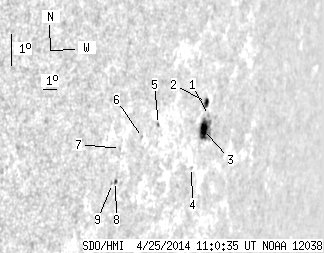

SDO HMI 2014-04-25 11:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.23 | 34.59 | 18.05 | 43.15 | -10.24 | 187.96 | 66.91 | 260.86 | 0.9181 | 298.1 | -58.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-25 11:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.42 | 0.00 | 1.84 | -9.69 | 188.92 | 67.87 | 261.46 | 0.9250 | -141.0 | -97.4 | |
| 2.76 | 4.27 | 3.51 | 5.44 | -9.31 | 188.60 | 67.55 | 261.87 | 0.9229 | 323.7 | 206.4 | |
| 10.85 | 21.70 | 13.89 | 27.93 | -10.13 | 188.70 | 67.65 | 260.98 | 0.9235 | 454.9 | -129.0 | |
| 0.00 | 1.25 | 0.00 | 1.57 | -11.33 | 188.28 | 67.22 | 259.68 | 0.9206 | 474.0 | 366.6 | |
| 0.00 | 1.51 | 0.00 | 1.70 | -10.23 | 185.32 | 64.26 | 260.91 | 0.8996 | -483.0 | -406.7 | |
| 0.00 | 0.62 | 0.00 | 0.68 | -10.70 | 184.37 | 63.32 | 260.39 | 0.8923 | -536.0 | -478.1 | |
| 0.00 | 0.71 | 0.00 | 0.74 | -11.13 | 183.04 | 61.99 | 259.89 | 0.8819 | -288.0 | -303.2 | |
| 0.62 | 1.78 | 0.65 | 1.86 | -12.14 | 183.10 | 62.05 | 258.75 | 0.8825 | 239.4 | 198.1 | |
| 0.00 | 1.33 | 0.00 | 1.39 | -12.21 | 182.94 | 61.88 | 258.66 | 0.8811 | 534.0 | 400.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
