SDO HMI 2014-04-25 12:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.80 | 8.64 | 0.49 | 5.59 | -14.67 | 159.62 | 39.12 | 253.15 | 0.6443 | -351.2 | -405.4 | |
|
previous
or next observation for the same group /

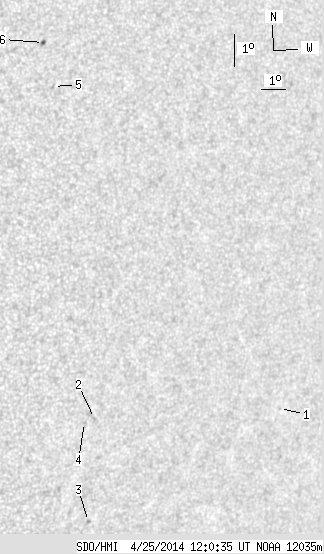

back to the solar disc SDO HMI 2014-04-25 12:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.20 | -17.77 | 168.84 | 48.34 | 250.49 | 0.7571 | -503.0 | -555.7 | |
| 0.00 | 1.69 | 0.00 | 1.12 | -18.52 | 160.84 | 40.33 | 247.26 | 0.6677 | -650.0 | -477.6 | |
| 0.00 | 1.69 | 0.00 | 1.15 | -21.73 | 161.59 | 41.09 | 242.97 | 0.6877 | -706.0 | -525.9 | |
| 0.00 | 1.16 | 0.00 | 0.76 | -18.66 | 160.46 | 39.95 | 246.92 | 0.6636 | -681.0 | -603.3 | |
| 0.00 | 1.96 | 0.00 | 1.21 | -8.50 | 157.28 | 36.78 | 262.09 | 0.6001 | -877.0 | -639.0 | |
| 0.80 | 1.87 | 0.49 | 1.15 | -7.19 | 156.77 | 36.27 | 264.25 | 0.5921 | 763.7 | 638.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
