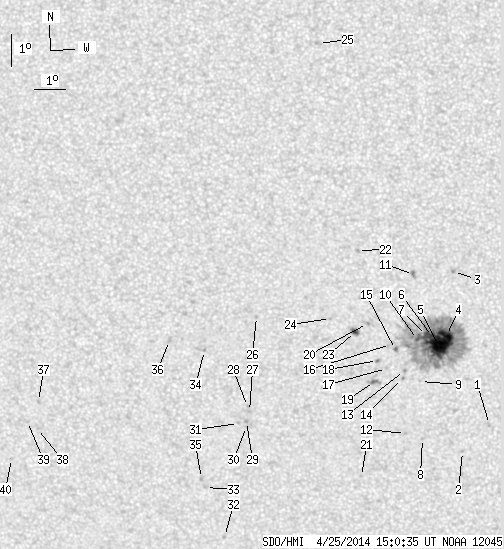

SDO HMI 2014-04-25 15:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.05 | 312.38 | 30.43 | 164.13 | -23.71 | 115.66 | -3.20 | 171.29 | 0.3328 | 370.9 | 259.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-25 15:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.60 | 0.00 | 0.85 | -26.25 | 118.14 | -0.71 | 178.26 | 0.3690 | 778.0 | 589.2 | |
| 0.00 | 1.07 | 0.00 | 0.57 | -27.13 | 117.22 | -1.64 | 176.19 | 0.3839 | 841.0 | 597.8 | |
| 0.00 | 1.96 | 0.00 | 1.01 | -21.36 | 117.01 | -1.85 | 174.02 | 0.2895 | -945.0 | -772.3 | |
| 9.96 | 252.16 | 5.21 | 132.16 | -23.39 | 116.75 | -2.11 | 173.99 | 0.3235 | 1544.3 | 422.6 | |
| 33.25 | -4.00 | 17.44 | -4.00 | -23.71 | 116.48 | -2.38 | 173.35 | 0.3292 | 1260.0 | 999999 | |
| 3.91 | -4.00 | 2.05 | -4.00 | -23.42 | 116.29 | -2.57 | 172.70 | 0.3249 | 1206.2 | 999999 | |
| 5.60 | -4.00 | 2.93 | -4.00 | -23.39 | 116.09 | -2.76 | 172.13 | 0.3248 | 1035.6 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.67 | -26.70 | 115.88 | -2.98 | 172.93 | 0.3790 | 742.0 | 572.3 | |
| 0.00 | 0.36 | 0.00 | 0.19 | -24.86 | 115.86 | -3.00 | 172.16 | 0.3493 | 418.0 | 267.5 | |
| 1.33 | -4.00 | 0.70 | -4.00 | -23.51 | 115.79 | -3.06 | 171.36 | 0.3276 | 891.3 | 999999 | |
| 0.00 | 3.38 | 0.00 | 1.75 | -21.45 | 115.71 | -3.15 | 169.95 | 0.2940 | -1099.0 | -864.5 | |
| 0.00 | 1.24 | 0.00 | 0.67 | -26.53 | 115.31 | -3.55 | 171.53 | 0.3776 | 747.0 | 519.9 | |
| 0.00 | 1.24 | 0.00 | 0.66 | -24.50 | 115.34 | -3.52 | 170.63 | 0.3448 | 776.0 | 645.4 | |
| 0.00 | 1.24 | 0.00 | 0.66 | -24.76 | 115.26 | -3.59 | 170.57 | 0.3491 | 684.0 | 534.2 | |
| 0.53 | 2.31 | 0.28 | 1.21 | -23.83 | 115.06 | -3.80 | 169.52 | 0.3347 | 839.5 | 501.6 | |
| 0.00 | 3.20 | 0.00 | 1.68 | -23.67 | 114.90 | -3.96 | 168.99 | 0.3326 | 597.0 | 522.1 | |
| 0.00 | 1.07 | 0.00 | 0.56 | -24.43 | 114.74 | -4.12 | 169.05 | 0.3454 | -776.0 | -581.4 | |
| 0.00 | 1.42 | 0.00 | 0.75 | -24.17 | 114.45 | -4.41 | 168.13 | 0.3422 | 617.0 | 532.1 | |
| 0.89 | 5.25 | 0.47 | 2.78 | -24.85 | 114.33 | -4.53 | 168.25 | 0.3534 | -1046.5 | -746.7 | |
| 0.00 | 2.13 | 0.00 | 1.12 | -22.99 | 114.16 | -4.69 | 166.51 | 0.3243 | -745.0 | -527.0 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -27.93 | 113.75 | -5.10 | 168.74 | 0.4040 | 723.0 | 595.0 | |
| 0.00 | 1.87 | 0.00 | 0.97 | -20.69 | 113.92 | -4.94 | 163.71 | 0.2883 | -938.0 | -727.7 | |
| 2.58 | 4.36 | 1.35 | 2.29 | -23.24 | 113.76 | -5.10 | 165.61 | 0.3299 | -1048.0 | -824.7 | |
| 0.00 | 0.89 | 0.00 | 0.47 | -22.82 | 112.95 | -5.90 | 163.07 | 0.3268 | -797.0 | -680.7 | |
| 0.00 | 2.85 | 0.00 | 1.44 | -14.27 | 112.88 | -5.98 | 148.80 | 0.1956 | -322.0 | -263.7 | |
| 0.00 | 1.16 | 0.00 | 0.61 | -22.73 | 110.52 | -8.34 | 156.68 | 0.3393 | -840.0 | -715.3 | |
| 0.00 | 1.07 | 0.00 | 0.57 | -25.77 | 110.07 | -8.78 | 159.11 | 0.3872 | -899.0 | -829.1 | |
| 0.00 | 0.98 | 0.00 | 0.52 | -25.61 | 110.02 | -8.84 | 158.83 | 0.3851 | -844.0 | -663.5 | |
| 0.00 | 1.24 | 0.00 | 0.67 | -26.09 | 109.95 | -8.91 | 159.17 | 0.3927 | -1020.0 | -900.6 | |
| 0.00 | 0.80 | 0.00 | 0.43 | -26.25 | 109.94 | -8.92 | 159.31 | 0.3952 | -677.0 | -597.2 | |
| 0.00 | 1.16 | 0.00 | 0.62 | -26.15 | 109.67 | -9.18 | 158.65 | 0.3952 | -763.0 | -602.8 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -29.86 | 108.85 | -10.01 | 160.52 | 0.4538 | -596.0 | -549.3 | |
| 0.00 | 1.87 | 0.00 | 1.03 | -28.23 | 108.35 | -10.51 | 158.12 | 0.4331 | -806.0 | -555.2 | |
| 0.00 | 1.33 | 0.00 | 0.71 | -23.79 | 108.71 | -10.14 | 153.85 | 0.3671 | -937.0 | -716.5 | |
| 0.00 | 2.58 | 0.00 | 1.41 | -27.93 | 108.24 | -10.62 | 157.63 | 0.4295 | -733.0 | -458.0 | |
| 0.00 | 3.20 | 0.00 | 1.71 | -23.45 | 107.57 | -11.29 | 150.92 | 0.3710 | -694.0 | -462.8 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -25.32 | 102.90 | -15.96 | 144.99 | 0.4351 | -810.0 | -707.8 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -26.19 | 102.74 | -16.12 | 145.99 | 0.4471 | -700.0 | -584.3 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -25.96 | 102.42 | -16.43 | 145.16 | 0.4471 | -627.0 | -521.1 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -27.14 | 101.68 | -17.18 | 145.67 | 0.4680 | -728.0 | -557.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
