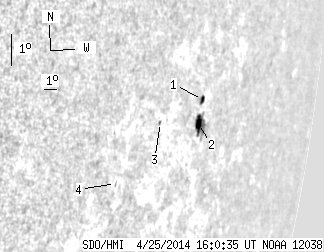

SDO HMI 2014-04-25 16:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.67 | 24.81 | 15.35 | 35.27 | -10.01 | 188.25 | 69.94 | 261.05 | 0.9378 | 316.5 | -117.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-25 16:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.22 | 3.47 | 3.20 | 4.99 | -9.28 | 188.64 | 70.34 | 261.83 | 0.9404 | 216.9 | 135.6 | |
| 8.45 | 18.67 | 12.15 | 27.07 | -10.02 | 188.63 | 70.32 | 261.04 | 0.9402 | 411.5 | -145.6 | |
| 0.00 | 1.51 | 0.00 | 1.89 | -10.23 | 185.47 | 67.16 | 260.88 | 0.9203 | -435.0 | -358.6 | |
| 0.00 | 1.16 | 0.00 | 1.32 | -12.28 | 182.96 | 64.65 | 258.62 | 0.9025 | 233.0 | 200.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
