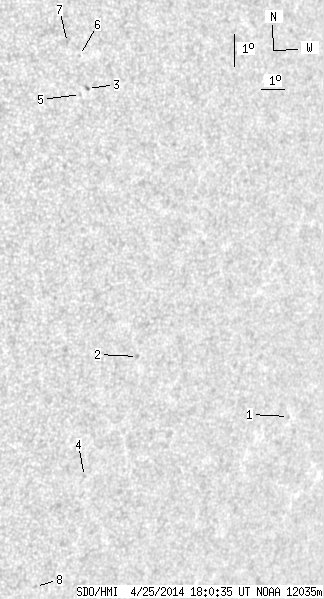

SDO HMI 2014-04-25 18:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.33 | 0.00 | 6.40 | -14.58 | 159.96 | 42.76 | 254.01 | 0.6890 | -279.9 | -305.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-25 18:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.65 | -17.75 | 168.89 | 51.69 | 251.14 | 0.7920 | -405.0 | -386.4 | |
| 0.00 | 1.96 | 0.00 | 1.36 | -16.32 | 161.27 | 44.07 | 251.49 | 0.7062 | -674.0 | -485.4 | |
| 0.00 | 1.33 | 0.00 | 0.87 | -8.32 | 157.59 | 40.39 | 262.69 | 0.6487 | -707.0 | -613.2 | |
| 0.00 | 1.33 | 0.00 | 0.93 | -20.14 | 160.13 | 42.93 | 245.85 | 0.7031 | -606.0 | -457.9 | |
| 0.00 | 0.80 | 0.00 | 0.52 | -8.51 | 157.33 | 40.13 | 262.37 | 0.6454 | -486.0 | -378.4 | |
| 0.00 | 0.80 | 0.00 | 0.52 | -7.34 | 157.15 | 39.96 | 264.18 | 0.6425 | 566.0 | 464.7 | |
| 0.00 | 1.07 | 0.00 | 0.68 | -6.97 | 156.64 | 39.44 | 264.74 | 0.6355 | 719.0 | 537.5 | |
| 0.00 | 1.24 | 0.00 | 0.87 | -23.69 | 159.27 | 42.07 | 240.68 | 0.7061 | -646.0 | -568.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
