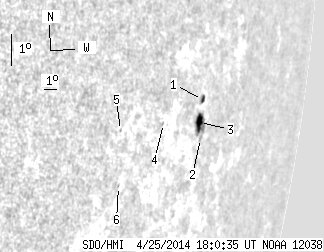

SDO HMI 2014-04-25 18:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.05 | 24.45 | 15.24 | 36.60 | -9.99 | 188.32 | 71.12 | 261.04 | 0.9445 | 192.0 | -48.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-25 18:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.96 | 3.20 | 2.97 | 4.86 | -9.29 | 188.58 | 71.38 | 261.78 | 0.9464 | 125.6 | 69.4 | |
| 0.00 | 2.22 | 0.00 | 3.43 | -10.45 | 189.00 | 71.80 | 260.54 | 0.9485 | -69.0 | -70.3 | |
| 8.09 | 16.98 | 12.27 | 25.83 | -9.99 | 188.65 | 71.45 | 261.04 | 0.9466 | 319.1 | -20.0 | |
| 0.00 | 0.62 | 0.00 | 0.82 | -10.26 | 185.52 | 68.33 | 260.83 | 0.9279 | -421.0 | -366.6 | |
| 0.00 | 1.16 | 0.00 | 1.34 | -10.71 | 182.34 | 65.14 | 260.37 | 0.9061 | -300.0 | -308.8 | |
| 0.00 | 0.27 | 0.00 | 0.32 | -12.39 | 182.94 | 65.74 | 258.52 | 0.9104 | 195.0 | 215.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
