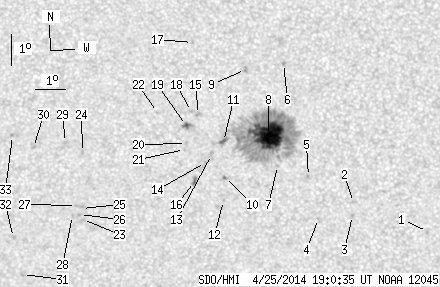

SDO HMI 2014-04-25 19:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.50 | 306.12 | 32.72 | 160.54 | -23.69 | 115.89 | -0.76 | 177.97 | 0.3280 | 412.6 | 246.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-25 19:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.31 | 0.00 | 1.24 | -26.66 | 121.77 | 5.12 | 192.04 | 0.3842 | 579.0 | 453.4 | |
| 0.00 | 0.98 | 0.00 | 0.52 | -25.73 | 119.24 | 2.60 | 186.50 | 0.3627 | 786.0 | 556.7 | |
| 0.00 | 1.33 | 0.00 | 0.71 | -26.15 | 119.22 | 2.58 | 186.29 | 0.3695 | 794.0 | 604.3 | |
| 0.00 | 1.16 | 0.00 | 0.62 | -26.25 | 118.08 | 1.43 | 183.50 | 0.3695 | 800.0 | 633.6 | |
| 0.00 | 1.24 | 0.00 | 0.66 | -24.89 | 117.73 | 1.09 | 182.85 | 0.3471 | 912.0 | 723.9 | |
| 0.00 | 1.87 | 0.00 | 0.97 | -21.30 | 116.90 | 0.25 | 180.83 | 0.2869 | -1037.0 | -770.5 | |
| 0.00 | 1.16 | 0.00 | 0.61 | -24.54 | 116.70 | 0.06 | 180.15 | 0.3408 | 87.0 | 111.9 | |
| 58.77 | 254.36 | 30.76 | 133.20 | -23.55 | 116.41 | -0.24 | 179.32 | 0.3244 | 1279.3 | 411.5 | |
| 0.00 | 2.76 | 0.00 | 1.43 | -21.49 | 115.67 | -0.98 | 176.85 | 0.2905 | -1049.0 | -813.9 | |
| 0.00 | 1.24 | 0.00 | 0.66 | -24.92 | 114.94 | -1.71 | 175.53 | 0.3482 | 583.0 | 505.6 | |
| 1.51 | -8.00 | 0.79 | -8.00 | -23.77 | 114.92 | -1.72 | 175.19 | 0.3292 | 883.8 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.38 | -25.66 | 114.89 | -1.75 | 175.60 | 0.3603 | -736.0 | -586.0 | |
| 0.00 | 2.93 | 0.00 | 1.54 | -24.18 | 114.52 | -2.13 | 174.21 | 0.3367 | -235.0 | -141.1 | |
| 0.00 | 1.16 | 0.00 | 0.61 | -24.44 | 114.32 | -2.33 | 173.75 | 0.3412 | -575.0 | -331.5 | |
| 0.00 | 2.49 | 0.00 | 1.30 | -22.91 | 114.12 | -2.53 | 172.59 | 0.3164 | 67.0 | -99.9 | |
| 0.89 | 3.29 | 0.47 | 1.74 | -25.05 | 113.94 | -2.71 | 172.98 | 0.3518 | -999.7 | -820.2 | |
| 0.00 | 1.33 | 0.00 | 0.69 | -20.63 | 113.97 | -2.68 | 170.95 | 0.2792 | -851.0 | -637.9 | |
| 0.00 | 1.69 | 0.00 | 0.88 | -22.81 | 113.89 | -2.76 | 171.89 | 0.3154 | -823.0 | -588.9 | |
| 1.33 | 5.16 | 0.70 | 2.70 | -23.25 | 113.72 | -2.93 | 171.60 | 0.3231 | -1085.7 | -756.8 | |
| 0.00 | 1.16 | 0.00 | 0.61 | -23.83 | 113.70 | -2.94 | 171.84 | 0.3325 | -856.0 | -699.4 | |
| 0.00 | 0.80 | 0.00 | 0.42 | -24.02 | 113.63 | -3.01 | 171.74 | 0.3358 | -795.0 | -632.4 | |
| 0.00 | 1.33 | 0.00 | 0.70 | -22.84 | 112.77 | -3.87 | 168.70 | 0.3189 | -913.0 | -568.7 | |
| 0.00 | 1.60 | 0.00 | 0.86 | -26.25 | 110.13 | -6.51 | 164.53 | 0.3831 | -754.0 | -663.7 | |
| 0.00 | 1.78 | 0.00 | 0.94 | -24.09 | 110.25 | -6.40 | 162.99 | 0.3491 | -742.0 | -603.7 | |
| 0.00 | 0.36 | 0.00 | 0.19 | -25.89 | 110.12 | -6.53 | 164.22 | 0.3776 | -627.0 | -688.8 | |
| 0.00 | 1.42 | 0.00 | 0.76 | -26.08 | 110.04 | -6.61 | 164.19 | 0.3810 | -859.0 | -728.4 | |
| 0.00 | 1.07 | 0.00 | 0.57 | -25.79 | 109.95 | -6.69 | 163.77 | 0.3768 | -708.0 | -595.4 | |
| 0.00 | 1.16 | 0.00 | 0.62 | -26.11 | 109.80 | -6.84 | 163.68 | 0.3825 | -783.0 | -613.7 | |
| 0.00 | 1.96 | 0.00 | 1.03 | -23.76 | 109.70 | -6.94 | 161.31 | 0.3468 | -766.0 | -632.6 | |
| 0.00 | 1.78 | 0.00 | 0.94 | -23.91 | 108.63 | -8.02 | 158.86 | 0.3550 | -847.0 | -692.8 | |
| 0.00 | 1.51 | 0.00 | 0.82 | -28.02 | 107.96 | -8.69 | 161.41 | 0.4202 | -818.0 | -700.4 | |
| 0.00 | 1.60 | 0.00 | 0.87 | -26.80 | 107.75 | -8.90 | 159.89 | 0.4033 | -836.0 | -676.3 | |
| 0.00 | 1.42 | 0.00 | 0.75 | -23.52 | 107.96 | -8.69 | 156.81 | 0.3533 | -937.0 | -763.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
